MPC555LFCZP40
IC MCU 32BIT 448KB FLASH 272PBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More

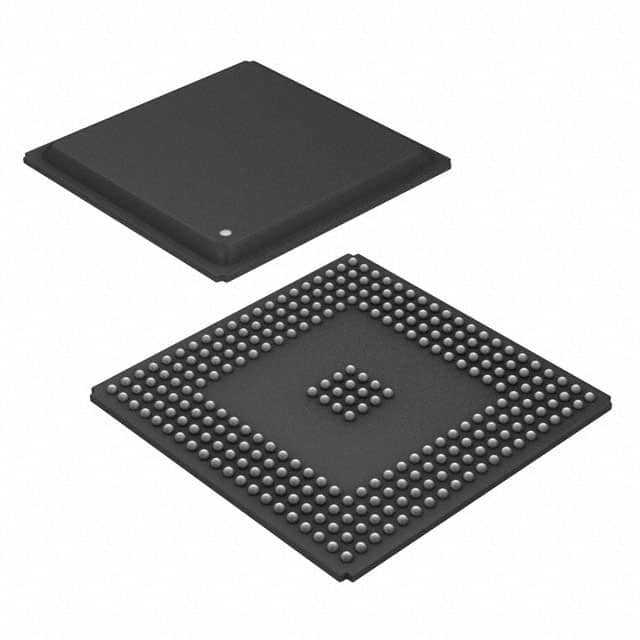

NXP USA Inc. MPC5xx series 32-bit PowerPC microcontroller, part number MPC555LFCZP40. This single-core device operates at 40MHz and features 448KB of FLASH program memory (448K x 8) and 26KB of RAM. Connectivity options include CANbus, EBI/EMI, SCI, SPI, and UART/USART. Integrated peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). It offers 32x10-bit Analog-to-Digital converters. The device is housed in a 272-PBGA (27x27) surface-mount package and operates from a 2.7V to 5.5V supply. This microcontroller is suitable for applications in the automotive and industrial sectors.
Additional Information
Series: MPC5xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 272-BBGA |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 448KB (448K x 8) |
| RAM Size | 26K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | PowerPC |
| Data Converters | A/D 32x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 272-PBGA (27x27) |
| Number of I/O | 101 |
| Programmable | Not Verified |
