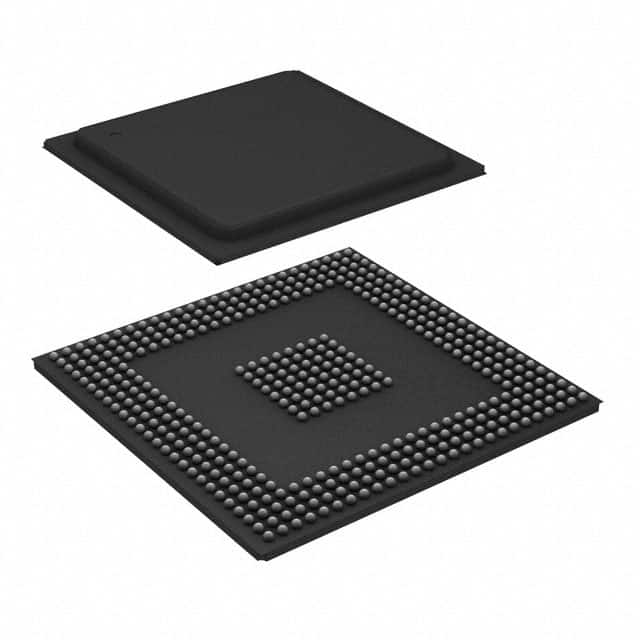

MPC5554AZP132
IC MCU 32BIT 2MB FLASH 416PBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MPC5554AZP132 is a 32-bit Qorivva series microcontroller featuring the e200z6 core. This single-core processor operates at 132MHz and offers 2MB of FLASH program memory, organized as 2M x 8. The device includes 64KB of RAM. Peripheral capabilities include DMA, POR, PWM, and WDT. Connectivity options encompass CANbus, EBI/EMI, SCI, and SPI. It is equipped with 40x12-bit Analog-to-Digital converters and provides 256 I/O lines. The MPC5554AZP132 is housed in a 416-PBGA (27x27) package, designed for surface mounting. Operating temperature ranges from -55°C to 125°C. This component is suitable for automotive applications and industrial automation.
Additional Information
Series: MPC55xx QorivvaRoHS Status: RoHS non-compliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 416-BBGA |
| Mounting Type | Surface Mount |
| Speed | 132MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z6 |
| Data Converters | A/D 40x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.35V ~ 1.65V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 416-PBGA (27x27) |
| Number of I/O | 256 |
| Programmable | Not Verified |
