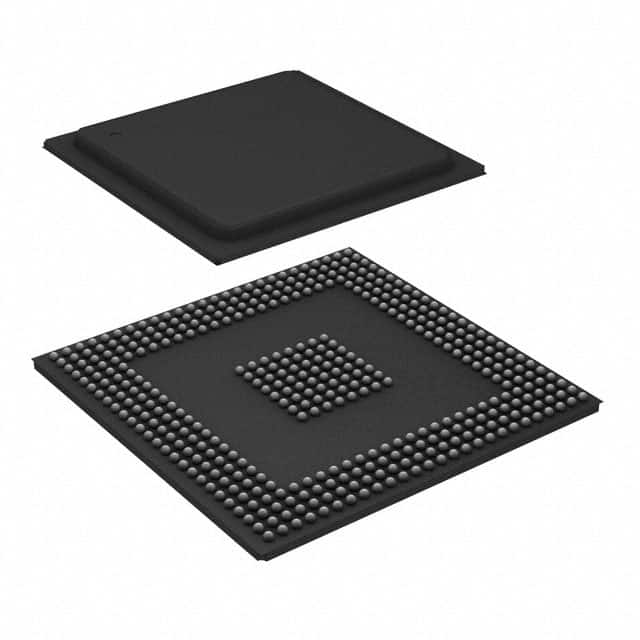

MPC5553MVR132
IC MCU 32BIT 1.5MB FLASH 416PBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MPC5553MVR132 is a 32-bit Qorivva microcontroller featuring an e200z6 core operating at 132MHz. This single-core device offers 1.5MB of FLASH program memory and 64KB of RAM. Connectivity options include CANbus, EBI/EMI, Ethernet, SCI, and SPI. It integrates 40 channels of 12-bit Analog-to-Digital converters and peripherals such as DMA, POR, PWM, and WDT. The MPC5553MVR132 is housed in a 416-PBGA (27x27) package, designed for surface mounting, and operates within a temperature range of -40°C to 125°C. This component finds application in automotive and industrial control systems.
Additional Information
Series: MPC55xx QorivvaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 416-BBGA |
| Mounting Type | Surface Mount |
| Speed | 132MHz |
| Program Memory Size | 1.5MB (1.5M x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | e200z6 |
| Data Converters | A/D 40x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.35V ~ 1.65V |
| Connectivity | CANbus, EBI/EMI, Ethernet, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 416-PBGA (27x27) |
| Number of I/O | 220 |
| Programmable | Not Verified |
