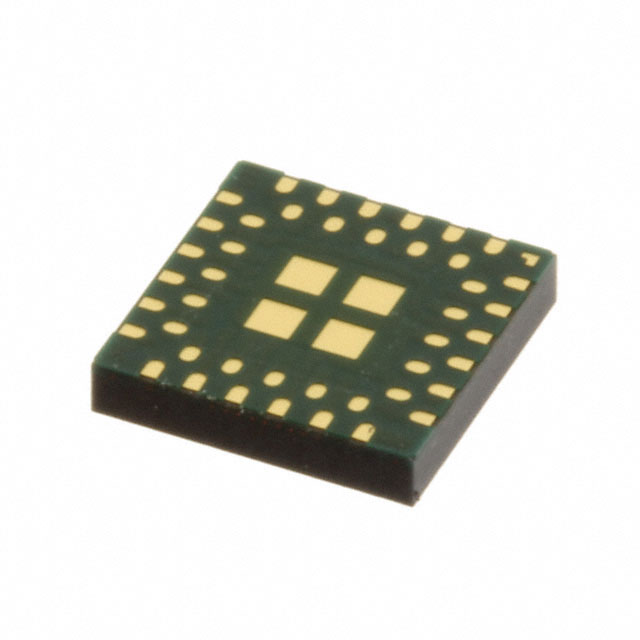

MKM14Z128CHH5R
IC MCU 32BIT 128KB FLSH 44MAPLGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. Kinetis KM series MKM14Z128CHH5R is a 32-bit microcontroller featuring an ARM Cortex-M0+ core operating at 50MHz. This single-core processor offers 128KB of FLASH program memory and 16KB of RAM. Connectivity options include I2C, SPI, and UART/USART interfaces. The device is equipped with multiple 16-bit and 24-bit Analog-to-Digital converters, along with DMA and WDT peripherals. Housed in a 44-MAPLGA (5x5) package, the MKM14Z128CHH5R supports surface mounting and operates within a voltage range of 1.71V to 3.6V. This component is suitable for applications in the industrial and automotive sectors. It is supplied in Tape & Reel packaging.
Additional Information
Series: Kinetis KMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-VFLGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 16K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D 5x16b, 4x24b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | DMA, WDT |
| Supplier Device Package | 44-MAPLGA (5x5) |
| Number of I/O | 20 |
| Programmable | Not Verified |
