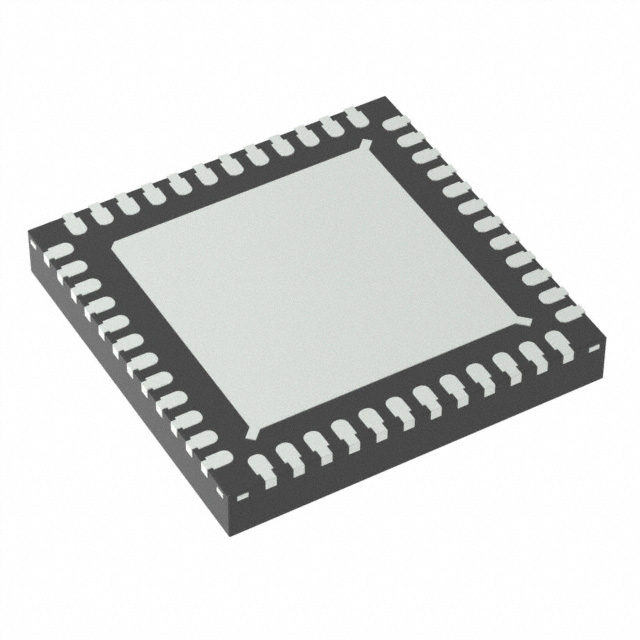

MKL26Z64VFT4R
IC MCU 32BIT 64KB FLASH 48QFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. Kinetis KL2 series microcontroller, part number MKL26Z64VFT4R, features an ARM Cortex-M0+ 32-bit single-core processor operating at 48MHz. This device offers 64KB of FLASH program memory and 8KB of RAM. Connectivity options include I2C, LINbus, SPI, UART/USART, and USB with OTG support. Integrated peripherals include DMA, I2S, PWM, and watchdog timers, along with power management features like Brown-out Detect/Reset and POR. Data conversion capabilities include a 16-bit A/D converter and a 12-bit D/A converter. The microcontroller is housed in a 48-QFN (7x7) exposed pad package and supports surface mount installation. Operating temperature range is -40°C to 105°C. This component is utilized in industrial, automotive, and consumer electronics applications.
Additional Information
Series: Kinetis KL2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D - 16bit; D/A - 12bit |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | I2C, LINbus, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 48-QFN (7x7) |
| Number of I/O | 36 |
| Programmable | Not Verified |
