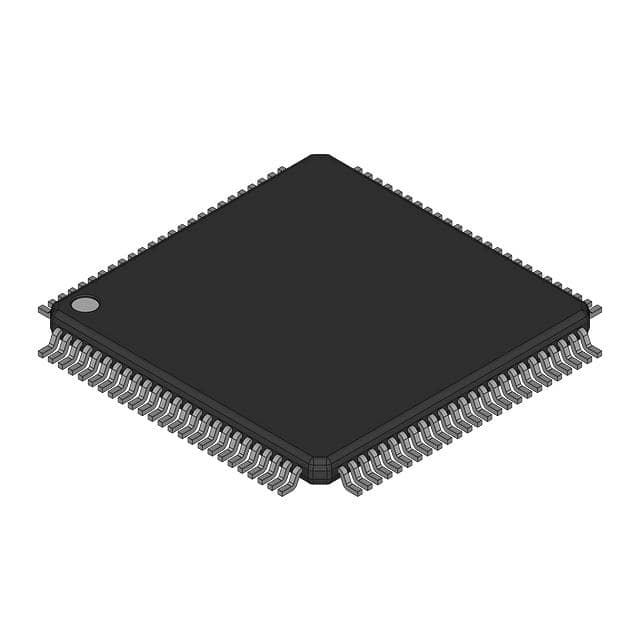

MK60DX256ZVLL10
IC MCU 32BIT 256KB FLASH 100LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. Kinetis K60 series microcontroller, part number MK60DX256ZVLL10. This 32-bit ARM Cortex-M4 core microcontroller operates at 100MHz, featuring 256KB of FLASH program memory and 64KB of RAM. The device includes a 4KB EEPROM. Peripheral set comprises DMA, I2S, LVD, POR, PWM, and WDT. Connectivity options include CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, and USB with OTG support. It offers 33x16-bit Analog-to-Digital converters and a 1x12-bit Digital-to-Analog converter. The MK60DX256ZVLL10 is housed in a 100-LQFP (14x14) surface-mount package and operates within a temperature range of -40°C to 105°C. The supply voltage is 1.71V to 3.6V. This component is utilized in industrial automation, automotive, and medical applications.
Additional Information
Series: Kinetis K60RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LQFP |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 33x16b; D/A 1x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 100-LQFP (14x14) |
| Number of I/O | 66 |
| Programmable | Not Verified |
