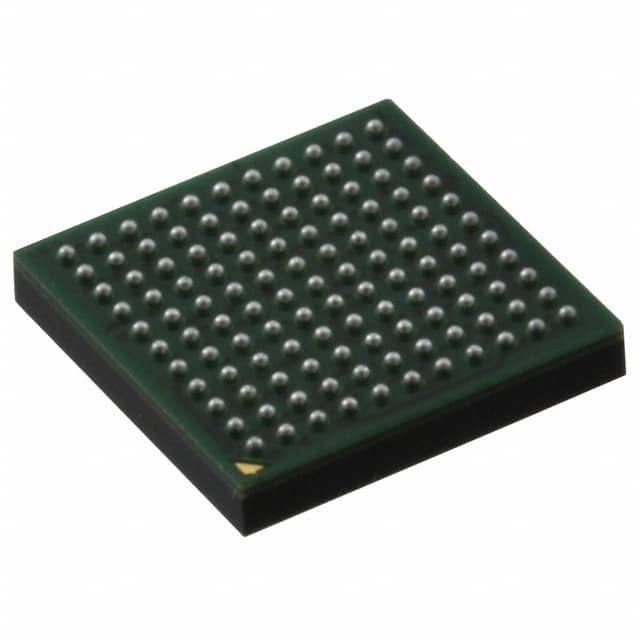

MK60DX256VMC10
IC MCU 32B 256KB FLASH 121MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. Kinetis K60 series microcontroller, part number MK60DX256VMC10, features an ARM Cortex-M4 32-bit single-core processor operating at 100MHz. This device offers 256KB of FLASH program memory and 64KB of RAM. Connectivity options include CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, and USB with OTG support. Integrated peripherals include DMA, I2S, LVD, POR, PWM, and WDT. Data conversion capabilities are provided by 38x16-bit ADCs and 2x12-bit DACs, with 4KB of EEPROM for data storage. The MK60DX256VMC10 is supplied in a 121-MAPBGA (8x8) package, suitable for surface mounting, and operates within a voltage range of 1.71V to 3.6V across an ambient temperature range of -40°C to 105°C. This component is widely utilized in industrial automation, automotive, and consumer electronics applications.
Additional Information
Series: Kinetis K60RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 121-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 38x16b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 121-MAPBGA (8x8) |
| Number of I/O | 86 |
| Programmable | Not Verified |
