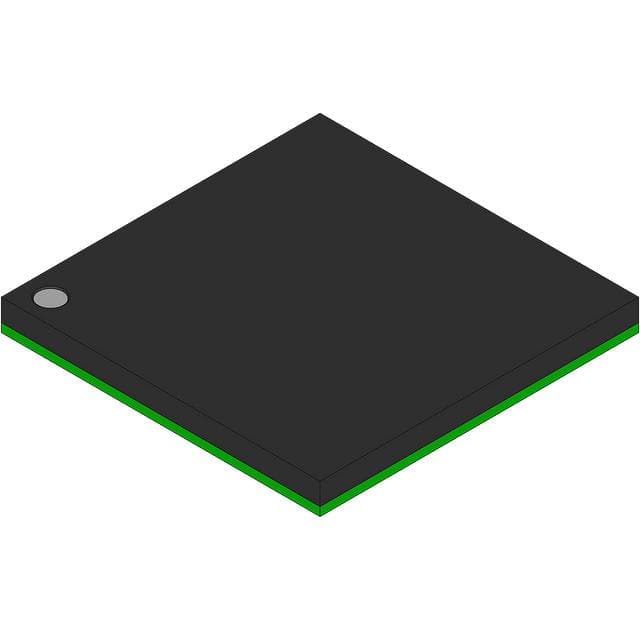

MK53DN512ZCMD10
IC MCU 32B 512KB FLASH 144MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. Kinetis K50 series microcontroller, part number MK53DN512ZCMD10. This 32-bit ARM Cortex-M4 core microcontroller operates at 100MHz, featuring 512KB of FLASH program memory and 128KB of RAM. Connectivity options include EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, and USB OTG. The device is equipped with 41x16-bit Analog-to-Digital converters and 2x12-bit Digital-to-Analog converters. Peripherals include DMA, I2S, LCD, LVD, POR, PWM, and WDT. The MK53DN512ZCMD10 is supplied in a 144-MAPBGA (13x13) package for surface mounting and operates within a voltage range of 1.71V to 3.6V. It is suitable for applications in industrial automation, automotive, and consumer electronics.
Additional Information
Series: Kinetis K50RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LBGA |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 128K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 41x16b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LCD, LVD, POR, PWM, WDT |
| Supplier Device Package | 144-MAPBGA (13x13) |
| Number of I/O | 94 |
| Programmable | Not Verified |
