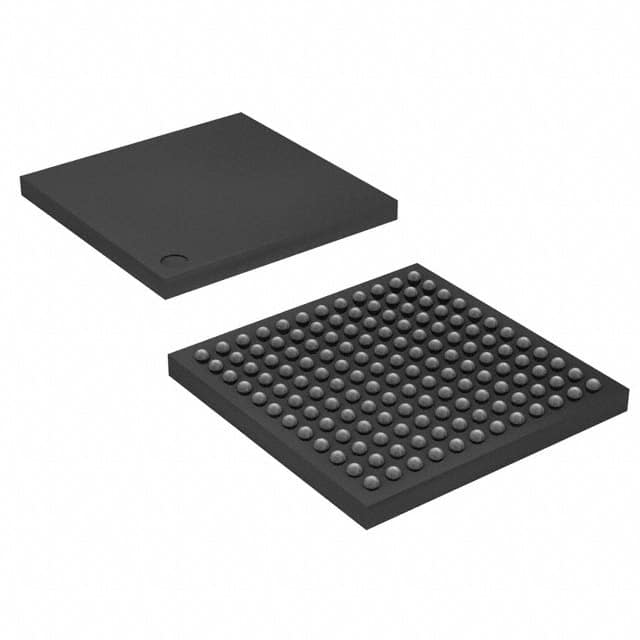

MK40DX256ZVMD10
IC MCU 32B 256KB FLASH 144MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. Kinetis K40 series microcontroller, part number MK40DX256ZVMD10, features an ARM Cortex-M4 32-bit single-core processor operating at 100MHz. This device offers 256KB of FLASH program memory and 64KB of RAM, along with 4KB of EEPROM. The MK40DX256ZVMD10 includes extensive connectivity options such as CANbus, EBI/EMI, I2C, IrDA, SD, SPI, UART/USART, and USB with OTG support. On-chip peripherals include DMA, I2S, LCD, LVD, POR, PWM, and WDT. Data conversion capabilities are provided by 42 channels of 16-bit Analog-to-Digital converters and 2 channels of 12-bit Digital-to-Analog converters. With 98 I/O lines and a 144-MAPBGA (13x13) package, this surface-mount component is suitable for demanding applications in industries such as automotive, industrial automation, and consumer electronics. It operates within a temperature range of -40°C to 105°C (TA) and requires a supply voltage between 1.71V and 3.6V. The internal oscillator simplifies system design.
Additional Information
Series: Kinetis K40RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LBGA |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 42x16b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LCD, LVD, POR, PWM, WDT |
| Supplier Device Package | 144-MAPBGA (13x13) |
| Number of I/O | 98 |
| Programmable | Not Verified |
