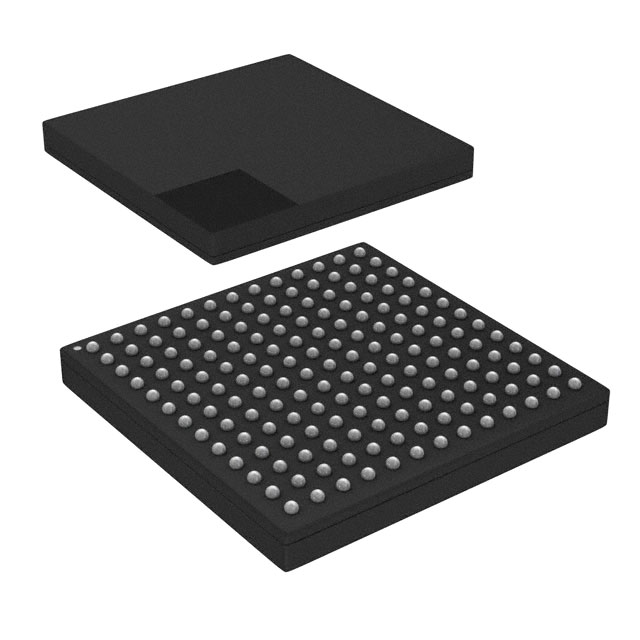

MK27FN2M0AVMI15
IC MCU 32BIT 2MB FLASH 169MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. Kinetis K27F series microcontroller, part number MK27FN2M0AVMI15. This 32-bit single-core ARM Cortex-M4 processor operates at 150MHz, featuring 2MB of FLASH program memory and 1MB of RAM. Connectivity options include EBI/EMI, I2C, QSPI, SDHC, SPI, UART/USART, and USB. Integrated peripherals consist of DMA, I2S, PWM, and WDT. Data conversion capabilities are provided by a 16-bit SAR Analog-to-Digital converter and multiple Digital-to-Analog converters. The device is housed in a 169-MAPBGA (9x9) surface-mount package, with 120 I/O pins. Operating temperature range is -40°C to 105°C. This component is suitable for applications in industrial automation, automotive, and consumer electronics.
Additional Information
Series: Kinetis K27FRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 169-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 150MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 1M x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 16b SAR; D/A 2x6b, 1x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | EBI/EMI, I2C, QSPI, SDHC, SPI, UART/USART, USB |
| Peripherals | DMA, I2S, PWM, WDT |
| Supplier Device Package | 169-MAPBGA (9x9) |
| Number of I/O | 120 |
| Programmable | Not Verified |
