MK22FN512VDC12R

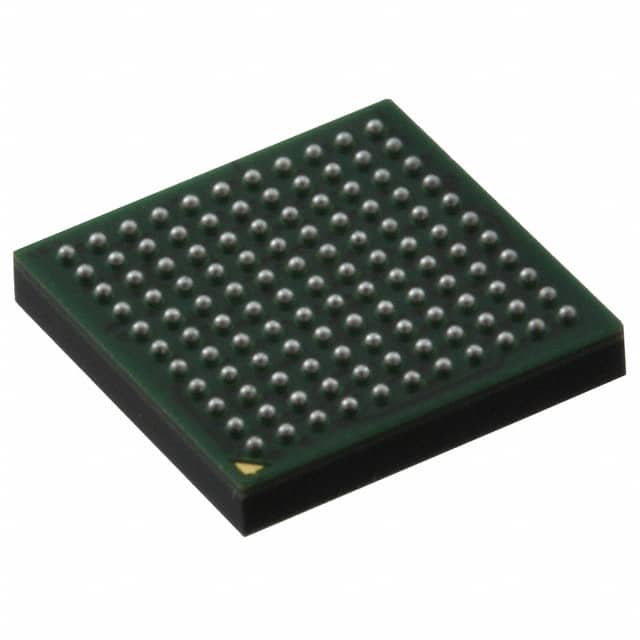

IC MCU 32BIT 512KB FLSH 121XFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc.'s MK22FN512VDC12R is a 32-bit ARM Cortex-M4 microcontroller from the Kinetis K20 series. This single-core device operates at 120MHz and features 512KB of FLASH program memory (512K x 8) and 128KB of RAM. Connectivity options include I2C, IrDA, SPI, UART/USART, and USB with OTG support. The microcontroller includes analog-to-digital converters with 38x16-bit channels and two 12-bit digital-to-analog converters. Peripherals such as DMA, I2S, LVD, POR, PWM, and WDT are integrated. This component, supplied in a 121-XFBGA (8x8) package, is suitable for surface mounting and operates within a temperature range of -40°C to 105°C. It is commonly used in industrial automation, medical equipment, and automotive applications. The voltage supply range is 1.71V to 3.6V.
Additional Information
Series: Kinetis K20RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 121-XFBGA |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 128K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 38x16b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 121-XFBGA (8x8) |
| Number of I/O | 81 |
| Programmable | Not Verified |
