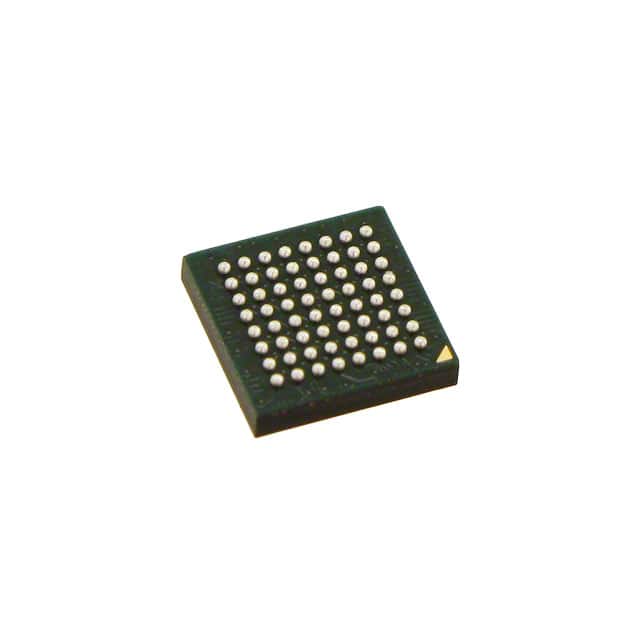

MK22FN256VMP12
IC MCU 32BIT 256KB FLSH 64MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. Kinetis K20 series microcontroller, part number MK22FN256VMP12, features an ARM Cortex-M4 32-bit single-core processor operating at 120MHz. This device offers 256KB of FLASH program memory and 48KB of RAM, with multiple connectivity options including I2C, SPI, UART/USART, and USB with OTG support. It includes integrated peripherals such as DMA, I2S, and PWM, along with data conversion capabilities including 22x16-bit ADCs and a 1x12-bit DAC. The MK22FN256VMP12 is housed in a 64-MAPBGA (5x5) surface-mount package and operates within a voltage range of 1.71V to 3.6V, with an ambient temperature rating of -40°C to 105°C. This component is suitable for applications in consumer electronics, industrial automation, and medical devices.
Additional Information
Series: Kinetis K20RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 48K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 22x16b; D/A 1x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 64-MAPBGA (5x5) |
| Number of I/O | 40 |
| Programmable | Not Verified |
