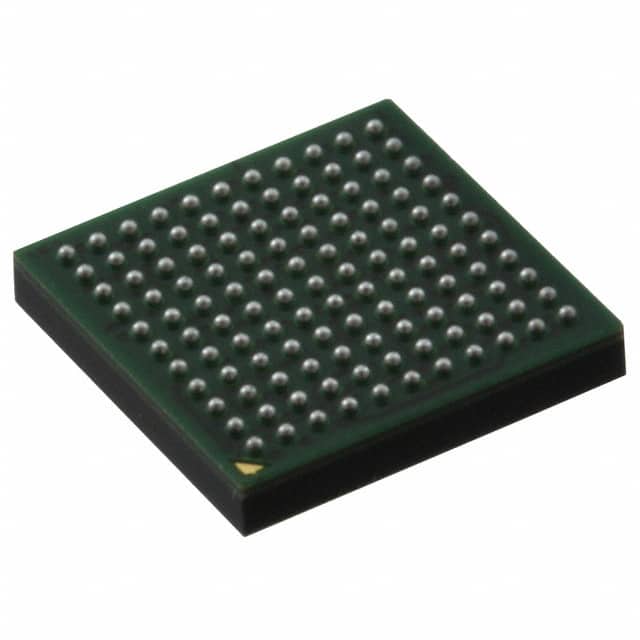

MK22FN1M0VMC12R
IC MCU 32BIT 1MB FLASH 121MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. Kinetis K20 Series MK22FN1M0VMC12R microcontroller featuring an ARM Cortex-M4 32-bit single-core processor operating at 120MHz. This device offers 1MB of FLASH program memory and 128KB of RAM. Connectivity options include CANbus, EBI/EMI, I2C, IrDA, SPI, UART/USART, and USB with OTG support. Integrated peripherals include DMA, I2S, LVD, POR, PWM, and WDT. The unit is equipped with 38 analog-to-digital converters (16-bit) and 2 digital-to-analog converters (12-bit). Supplied in a 121-MAPBGA (8x8) package for surface mounting, operating within a temperature range of -40°C to 105°C. This component is commonly utilized in industrial automation, medical devices, and automotive applications.
Additional Information
Series: Kinetis K20RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 121-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 128K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 38x16b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 121-MAPBGA (8x8) |
| Number of I/O | 64 |
| Programmable | Not Verified |
