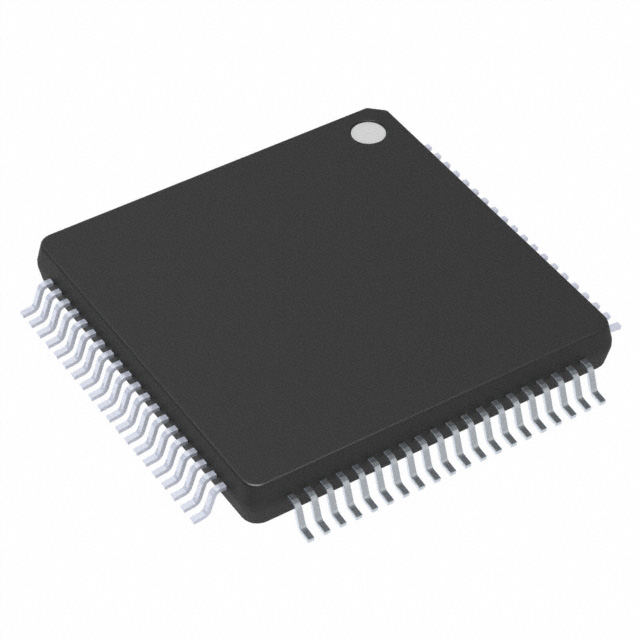

MK22FN1M0VLK12R
IC MCU 32BIT 1MB FLASH 80FQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. Kinetis K20 Series MK22FN1M0VLK12R is a 32-bit ARM Cortex-M4 microcontroller featuring a single-core 120MHz processor. This device offers 1MB of FLASH program memory and 128KB of RAM, with 27x16-bit Analog-to-Digital converters and one 12-bit Digital-to-Analog converter. Connectivity options include CANbus, EBI/EMI, I2C, IrDA, SPI, UART/USART, and USB with OTG support. Peripherals such as DMA, I2S, LVD, POR, PWM, and WDT are integrated. The component is housed in an 80-FQFP (12x12) package and supports surface mounting. Operating voltage ranges from 1.71V to 3.6V with an operating temperature range of -40°C to 105°C (TA). The MK22FN1M0VLK12R is designed for applications in industrial automation, automotive, and medical instrumentation. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: Kinetis K20RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 80-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 128K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 27x16b; D/A 1x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 80-FQFP (12x12) |
| Number of I/O | 56 |
| Programmable | Not Verified |
