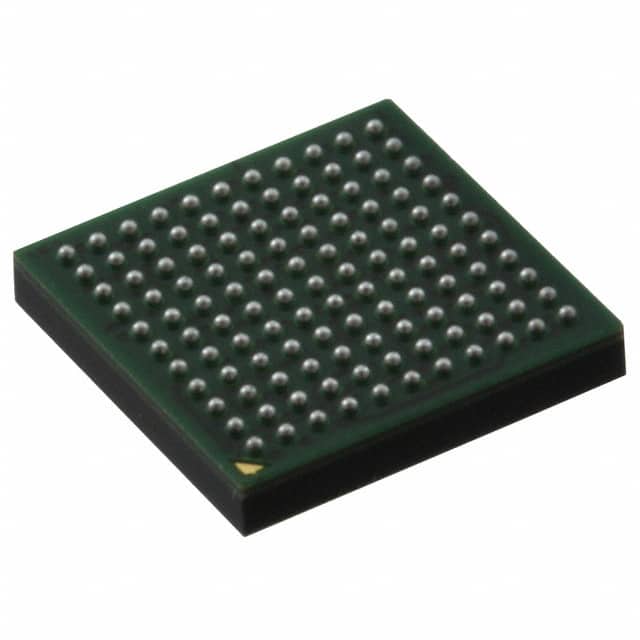

MK22DN512VDC5R
IC MCU 32BIT 512KB FLSH 121XFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
ARM® Cortex®-M4 Kinetis K20 Microcontroller IC 32-Bit Single-Core 50MHz 512KB (512K x 8) FLASH 121-XFBGA (8x8)
Additional Information
Series: Kinetis K20RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 121-XFBGA |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 20x16b; D/A 1x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 121-XFBGA (8x8) |
| Number of I/O | 56 |
| Programmable | Not Verified |
