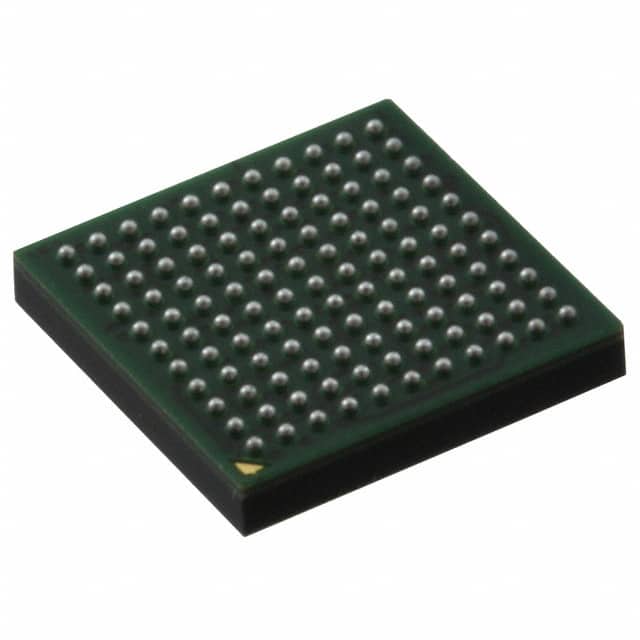

MK21FN1M0VMC12
IC MCU 32BIT 1MB FLASH 121MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. Kinetis K20 series MK21FN1M0VMC12 is a 32-bit ARM Cortex-M4 microcontroller featuring a 120MHz single-core processor. This device offers 1MB of FLASH program memory and 128KB of RAM, with data conversion capabilities including 40x16b ADCs and 2x12b DACs. Connectivity options are extensive, supporting CANbus, I2C, IrDA, SPI, UART/USART, and USB with OTG functionality. Peripherals include DMA, I2S, LVD, POR, PWM, and WDT. The microcontroller operates within a voltage range of 1.71V to 3.6V and is supplied in a 121-MAPBGA (8x8) surface-mount package, suitable for applications in automotive, industrial automation, and consumer electronics. This component is provided in Tray packaging.
Additional Information
Series: Kinetis K20RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 121-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 128K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 40x16b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | CANbus, I2C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 121-MAPBGA (8x8) |
| Number of I/O | 64 |
| Programmable | Not Verified |
