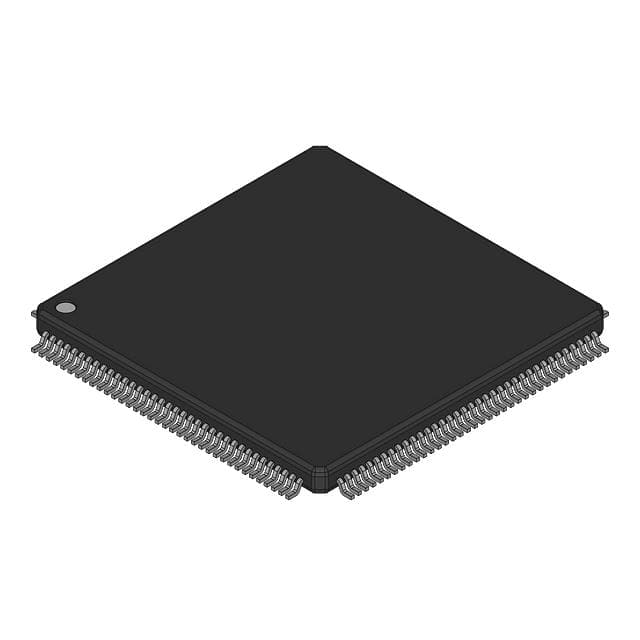

MK21FN1M0AVLQ12
IC MCU 32BIT 1MB FLASH 144LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. Kinetis K20 series microcontroller, part number MK21FN1M0AVLQ12. This 32-bit ARM Cortex-M4 core microcontroller operates at 120MHz and features 1MB of FLASH program memory. It includes 128KB of RAM, 42x16-bit Analog-to-Digital converters, and 2x12-bit Digital-to-Analog converters. Connectivity options include CANbus, I2C, IrDA, SPI, UART/USART, and USB with OTG support. Peripherals include DMA, I2S, LVD, POR, PWM, and WDT. The device is supplied in a 144-LQFP (20x20) surface mount package and operates within an ambient temperature range of -40°C to 105°C. This component is suitable for applications in industrial automation, medical devices, and automotive systems.
Additional Information
Series: Kinetis K20RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 128K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 42x16b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | CANbus, I2C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 144-LQFP (20x20) |
| Number of I/O | 100 |
| Programmable | Not Verified |
