MK20DX256ZVMD10

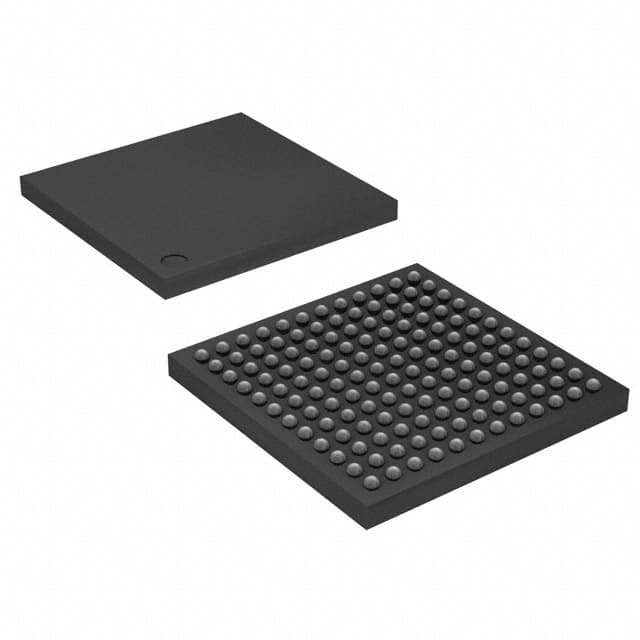

IC MCU 32B 256KB FLASH 144MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. Kinetis K20 series microcontroller, part number MK20DX256ZVMD10. This 32-bit ARM Cortex-M4 core microcontroller operates at 100MHz, featuring 256KB of FLASH program memory and 64KB of SRAM. Connectivity options include CANbus, EBI/EMI, I2C, IrDA, SD, SPI, UART/USART, and USB with OTG support. Integrated peripherals comprise DMA, I2S, LVD, POR, PWM, and WDT. The device offers multiple data conversion capabilities with 42x16-bit ADCs and 2x12-bit DACs, alongside 4KB of EEPROM. Supplied in a 144-MAPBGA (13x13) package for surface mounting, this component is suitable for applications in industrial automation, automotive, and consumer electronics. Operating voltage range is 1.71V to 3.6V, with an operating temperature range of -40°C to 105°C.
Additional Information
Series: Kinetis K20RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LBGA |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 42x16b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 144-MAPBGA (13x13) |
| Number of I/O | 100 |
| Programmable | Not Verified |
