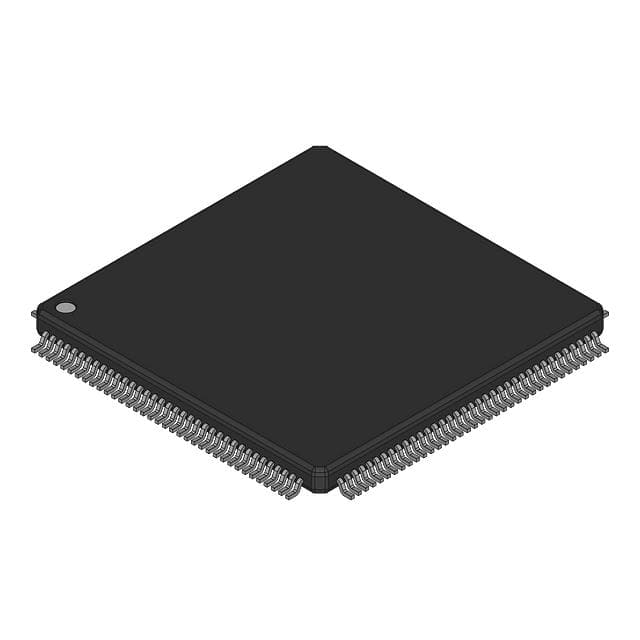

MK20DX128ZVLQ10
IC MCU 32BIT 128KB FLASH 144LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. Kinetis K20 series microcontroller, part number MK20DX128ZVLQ10, is a 32-bit ARM Cortex-M4 core microcontroller operating at 100MHz. This device features 128KB of FLASH program memory and 32KB of RAM, along with 4KB of EEPROM. It offers a wide range of connectivity options including CANbus, EBI/EMI, I2C, IrDA, SD, SPI, UART/USART, and USB with OTG support. Integrated peripherals include DMA, I2S, LVD, POR, PWM, and WDT. The MK20DX128ZVLQ10 includes 42x16-bit Analog-to-Digital converters and 2x12-bit Digital-to-Analog converters. This surface-mount component is housed in a 144-LQFP (20x20) package and operates within a voltage range of 1.71V to 3.6V, with an operating temperature of -40°C to 105°C. This microcontroller is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: Kinetis K20RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 42x16b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Supplier Device Package | 144-LQFP (20x20) |
| Number of I/O | 100 |
| Programmable | Not Verified |
