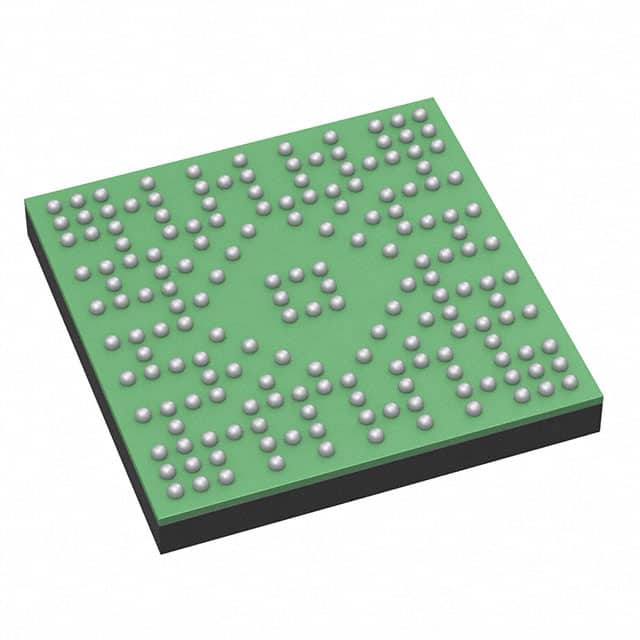

MIMXRT685SFFOB
IC MCU 32BIT EXT MEM 249FOWLPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MIMXRT685SFFOB is a 32-bit dual-core ARM Cortex-M33 microcontroller from the RT-600 series. This device operates at a speed of 300MHz and features external program memory. It is packaged in a 249-FOWLP (7x7) with a surface mount type. Connectivity options include EBI/EMI, I2C, MMC/SD/SDIO, SPDIF, SPI, UART/USART, and USB2.0 OTG. The microcontroller offers 147 I/O pins and includes peripherals such as Brown-out Detect/Reset, DMA, POR, PWM, and WDT. It also features 12x12b SAR Analog-to-Digital converters and 4.5M x 8 RAM. The operating voltage range is 1.71V to 3.6V, with an operating temperature of -20°C to 85°C (TA). This component finds application in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: RT-600RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 249-WFBGA |
| Mounting Type | Surface Mount |
| Speed | 300MHz |
| Program Memory Size | - |
| RAM Size | 4.5M x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | External Program Memory |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M33 |
| Data Converters | A/D 12x12b SAR |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | EBI/EMI, I2C, MMC/SD/SDIO, SPDIF, SPI, UART/USART, USB2.0 OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 249-FOWLP (7x7) |
| Grade | - |
| Number of I/O | 147 |
| Programmable | Not Verified |
| Qualification | - |
