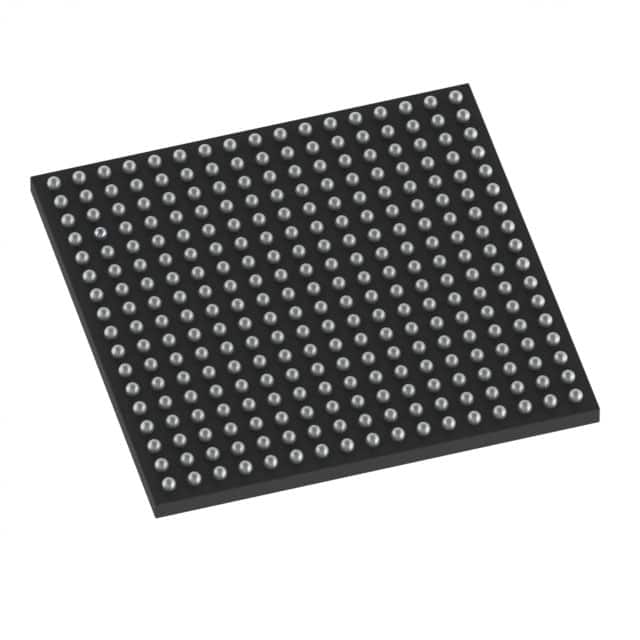

MIMXRT1175AVM8A
IC MCU 32BIT EXT MEM 289MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. RT1170 MIMXRT1175AVM8A is a 32-bit dual-core microcontroller featuring ARM Cortex-M4 and Cortex-M7 processors. This device offers clock speeds of 400MHz and 800MHz, with support for external program memory. It boasts 2MB of RAM and a comprehensive suite of peripherals including CANbus, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, and USB OTG connectivity. Integrated data conversion capabilities include 20x12b SAR ADCs and a 1x12b DAC. Additional features encompass DMA, LCD controller, brown-out detect/reset, POR, PWM, temperature sensor, and WDT. The MIMXRT1175AVM8A is housed in a 289-LFBGA (14x14) package, suitable for surface mount applications and operates within a junction temperature range of -40°C to 125°C. Its voltage supply range is 1.65V to 1.95V and 3V to 3.6V. This microcontroller is commonly utilized in industrial automation, automotive, and consumer electronics applications.
Additional Information
Series: RT1170RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 289-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 400MHz, 800MHz |
| Program Memory Size | - |
| RAM Size | 2M x 8 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Oscillator Type | External, Internal |
| Program Memory Type | External Program Memory |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4, Cortex®-M7 |
| Data Converters | A/D 20x12b SAR; D/A 1x12b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 1.95V, 3V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, Temp Sensor, WDT |
| Supplier Device Package | 289-LFBGA (14x14) |
| Grade | - |
| Number of I/O | 13 |
| Programmable | Not Verified |
| Qualification | - |
