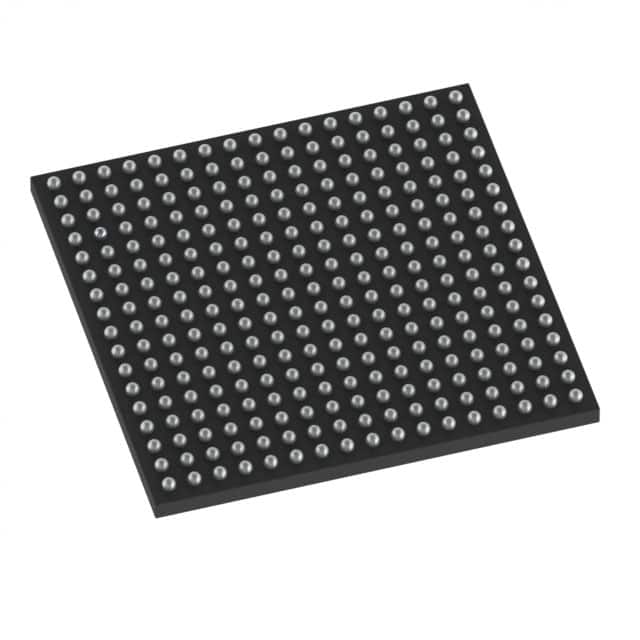

MIMXRT1171AVM8AR
IC MCU 32BIT EXT MEM 289MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. RT1170 series microcontroller, part number MIMXRT1171AVM8AR. This 32-bit single-core ARM Cortex-M7 processor operates at 800MHz, featuring external program memory support. It is housed in a 289-LFBGA (14x14mm) package for surface mounting. The device offers extensive connectivity options including CANbus, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, and USB OTG. Integrated peripherals include DMA, LCD controller, PWM, and watchdog timers. It also incorporates 2MB of RAM and includes 20x12-bit SAR Analog-to-Digital Converters and a 1x12-bit Digital-to-Analog Converter. Operating temperature range is -40°C to 125°C (TJ), with dual voltage supply options of 1.65V to 1.95V and 3V to 3.6V. This component is suitable for applications in automotive, industrial, and consumer electronics.
Additional Information
Series: RT1170RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 289-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Program Memory Size | - |
| RAM Size | 2M x 8 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Oscillator Type | External, Internal |
| Program Memory Type | External Program Memory |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M7 |
| Data Converters | A/D 20x12b SAR; D/A 1x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 1.95V, 3V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, Temp Sensor, WDT |
| Supplier Device Package | 289-LFBGA (14x14) |
| Grade | - |
| Number of I/O | 13 |
| Qualification | - |
