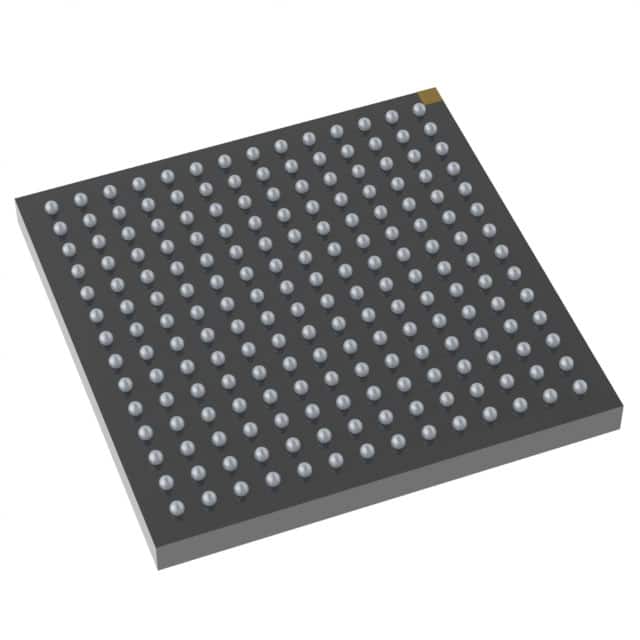

MIMXRT106SDVL6A
IC MCU 32BIT ROMLESS 196LFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MIMXRT106SDVL6A is a 32-bit ARM Cortex-M7 core microcontroller operating at 600MHz. This ROMless device features a single-core architecture and utilizes external program memory. The MIMXRT1060 series microcontroller offers 1MB of RAM and a comprehensive suite of peripherals including CANbus, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, and USB OTG connectivity. It also supports A/D conversion with twenty 12-bit channels and includes peripherals such as Brown-out Detect/Reset, DMA, LCD controller, POR, PWM, and WDT. The device is housed in a 196-MAPBGA (10x10) surface-mount package, requiring an operating voltage of 3V to 3.6V. This component is suitable for applications in industrial automation, automotive systems, and consumer electronics.
Additional Information
Series: RT1060RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 600MHz |
| Program Memory Size | - |
| RAM Size | 1M x 8 |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Oscillator Type | External, Internal |
| Program Memory Type | External Program Memory |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M7 |
| Data Converters | A/D 20x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Supplier Device Package | 196-MAPBGA (10x10) |
| Number of I/O | 127 |
| Programmable | Not Verified |
