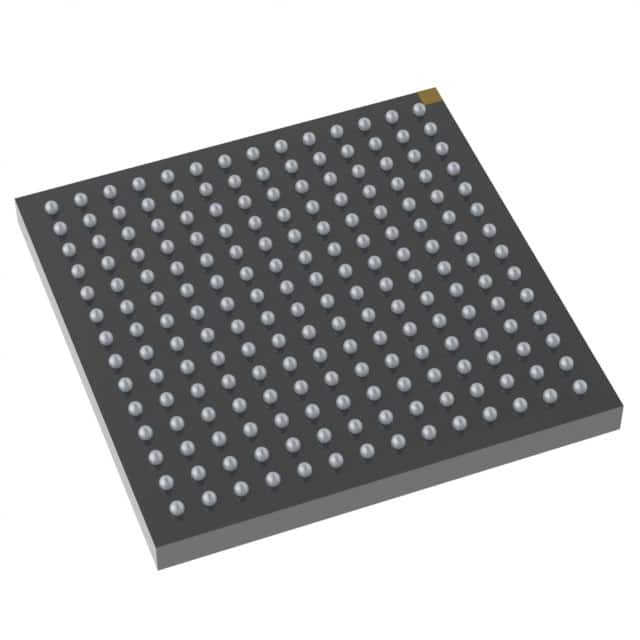

MIMXRT106FDVL6A
IC MCU 32BIT ROMLESS 196LFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MIMXRT106FDVL6A is a 32-bit ARM Cortex-M7 core microcontroller, part of the RT1060 series. Operating at speeds up to 600MHz, this single-core processor features 1MB of SRAM and requires external program memory. It offers extensive connectivity options including CANbus, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, and USB OTG. The device includes a 20x12-bit Analog-to-Digital converter and peripherals such as Brown-out Detect/Reset, DMA, POR, PWM, and WDT. With 127 I/O lines, it is housed in a 196-MAPBGA (10x10) surface-mount package. Applications for this component span industrial automation, advanced audio processing, and high-performance embedded systems.
Additional Information
Series: RT1060RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 600MHz |
| Program Memory Size | - |
| RAM Size | 1M x 8 |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Oscillator Type | External, Internal |
| Program Memory Type | External Program Memory |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M7 |
| Data Converters | A/D 20x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | - |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 196-MAPBGA (10x10) |
| Number of I/O | 127 |
| Programmable | Not Verified |
