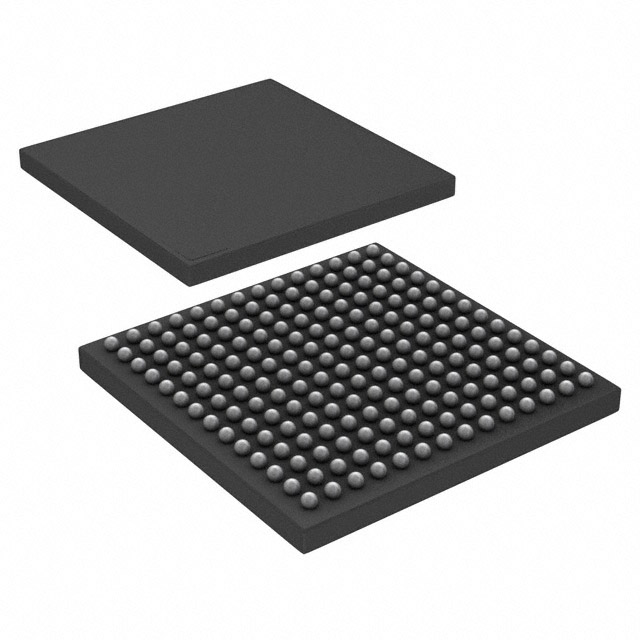

MIMXRT1062CVJ5AR
IC MCU 32BIT EXT MEM 196LFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. RT1060 series microcontroller, part number MIMXRT1062CVJ5AR, features a 32-bit single-core ARM Cortex-M7 processor operating at 528MHz. This device supports external program memory and includes 1MB of RAM. Connectivity options encompass CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, and USB OTG. On-chip peripherals include Brown-out Detect/Reset, DMA, LCD, POR, PWM, and WDT. It offers 20x12b Analog-to-Digital converters and 127 I/O lines. The MIMXRT1062CVJ5AR is supplied in a 196-LFBGA (12x12) package for surface mounting and operates within a temperature range of -40°C to 105°C (TJ). This component is utilized in industries such as industrial automation, automotive, and consumer electronics.
Additional Information
Series: RT1060RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 196-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 528MHz |
| Program Memory Size | - |
| RAM Size | 1M x 8 |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Oscillator Type | External, Internal |
| Program Memory Type | External Program Memory |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M7 |
| Data Converters | A/D 20x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Supplier Device Package | 196-LFBGA (12x12) |
| Number of I/O | 127 |
| Programmable | Not Verified |
