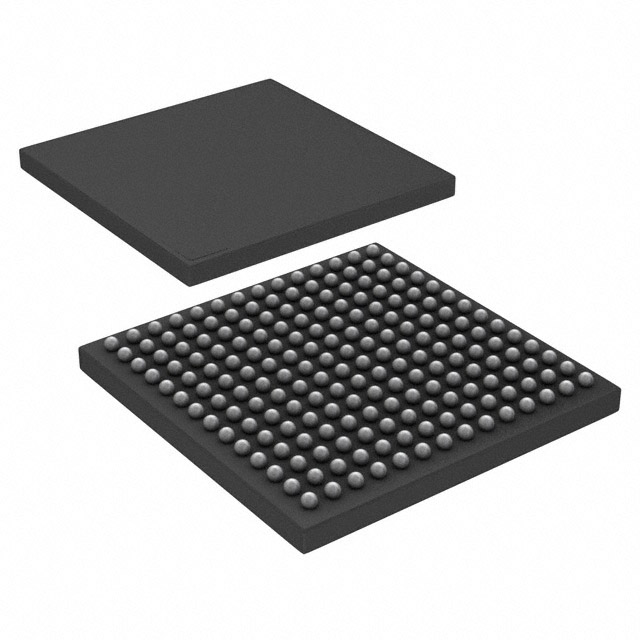

MIMXRT1061DVJ6A
IC MCU 32BIT ROMLESS 196LFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. RT1060 Series MIMXRT1061DVJ6A is a 32-bit, single-core ARM Cortex-M7 microcontroller operating at 600MHz. This device features external program memory, a 1M x 8 RAM size, and 127 I/O pins. Connectivity options include CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, and USB OTG. Peripherals include Brown-out Detect/Reset, DMA, POR, PWM, and WDT. The MIMXRT1061DVJ6A is housed in a 196-LFBGA (12x12) package and is designed for surface mounting. Operating temperature is rated from 0°C to 95°C (TJ). This microcontroller is commonly found in industrial automation, automotive, and consumer electronics applications.
Additional Information
Series: RT1060RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 600MHz |
| Program Memory Size | - |
| RAM Size | 1M x 8 |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Oscillator Type | External, Internal |
| Program Memory Type | External Program Memory |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M7 |
| Data Converters | A/D 20x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 196-LFBGA (12x12) |
| Number of I/O | 127 |
| Programmable | Not Verified |
