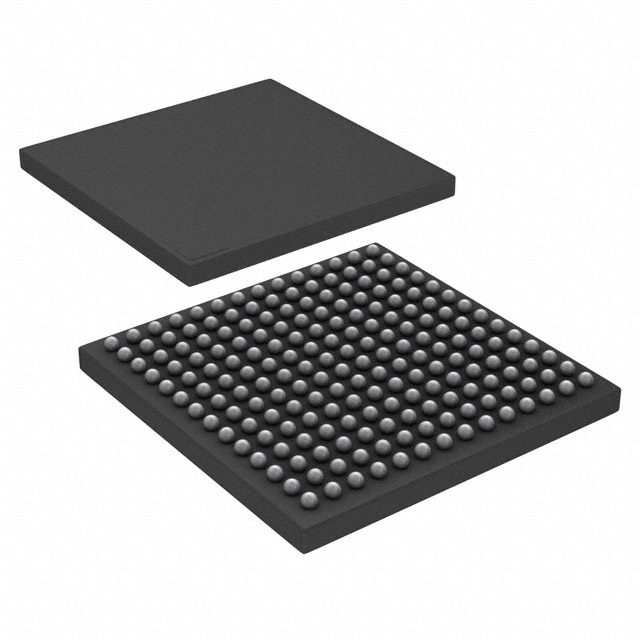

MIMXRT1061CVJ5A
IC MCU 32BIT 196MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. RT1060 Series MIMXRT1061CVJ5A is a 32-bit ARM Cortex-M7 microcontroller. This single-core processor operates at 528MHz and features external program memory. The device offers 1M x 8 RAM and a comprehensive peripheral set including CANbus, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, and USB OTG connectivity. Additional peripherals include DMA, PWM, and WDT. The MIMXRT1061CVJ5A is housed in a 196-LFBGA (12x12mm) package, suitable for surface mounting. It supports an operating temperature range of -40°C to 105°C (TJ) and operates from a 3V to 3.6V supply. This component finds application in industrial automation, medical devices, and automotive systems.
Additional Information
Series: RT1060RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 528MHz |
| Program Memory Size | - |
| RAM Size | 1M x 8 |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Oscillator Type | External, Internal |
| Program Memory Type | External Program Memory |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M7 |
| Data Converters | A/D 20x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 196-LFBGA (12x12) |
| Number of I/O | 127 |
| Programmable | Not Verified |
