MCXN947VDFT
IC MCX N94 150MHZ DUAL CORE NPUManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MCX N Series MCXN947VDFT is a 32-bit dual-core microcontroller featuring ARM Cortex-M33 processors operating at 150MHz. This component offers 2MB of FLASH program memory and 512KB of RAM. Connectivity options include CAN, Ethernet, Flexcomm, FlexSPI, I3C, SAI, SCI, and USB interfaces. The device integrates two 16-bit Analog-to-Digital converters and multiple Digital-to-Analog converters (two 12-bit, one 14-bit). Peripherals such as DMA, POR, PWM, and WDT are included. With 124 I/O lines and a supply voltage range of 1.71V to 3.6V, the MCXN947VDFT is suitable for applications in automotive and industrial automation. The component is supplied in an 184-VFBGA (9x9) package and operates within a temperature range of -40°C to 125°C.
Additional Information
Series: MCX NRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Mounting Type | Surface Mount |
| Speed | 150MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 512K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M33 |
| Data Converters | A/D 2x16b; D/A 2x12b, 1x14b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | CAN, Ethernet, Flexcomm, FlexSPI, I3C, SAI, SCI, USB |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 184-VFBGA (9x9) |
| Grade | - |
| Number of I/O | 124 |
| Qualification | - |
Request a Quote
Clients Also Buy

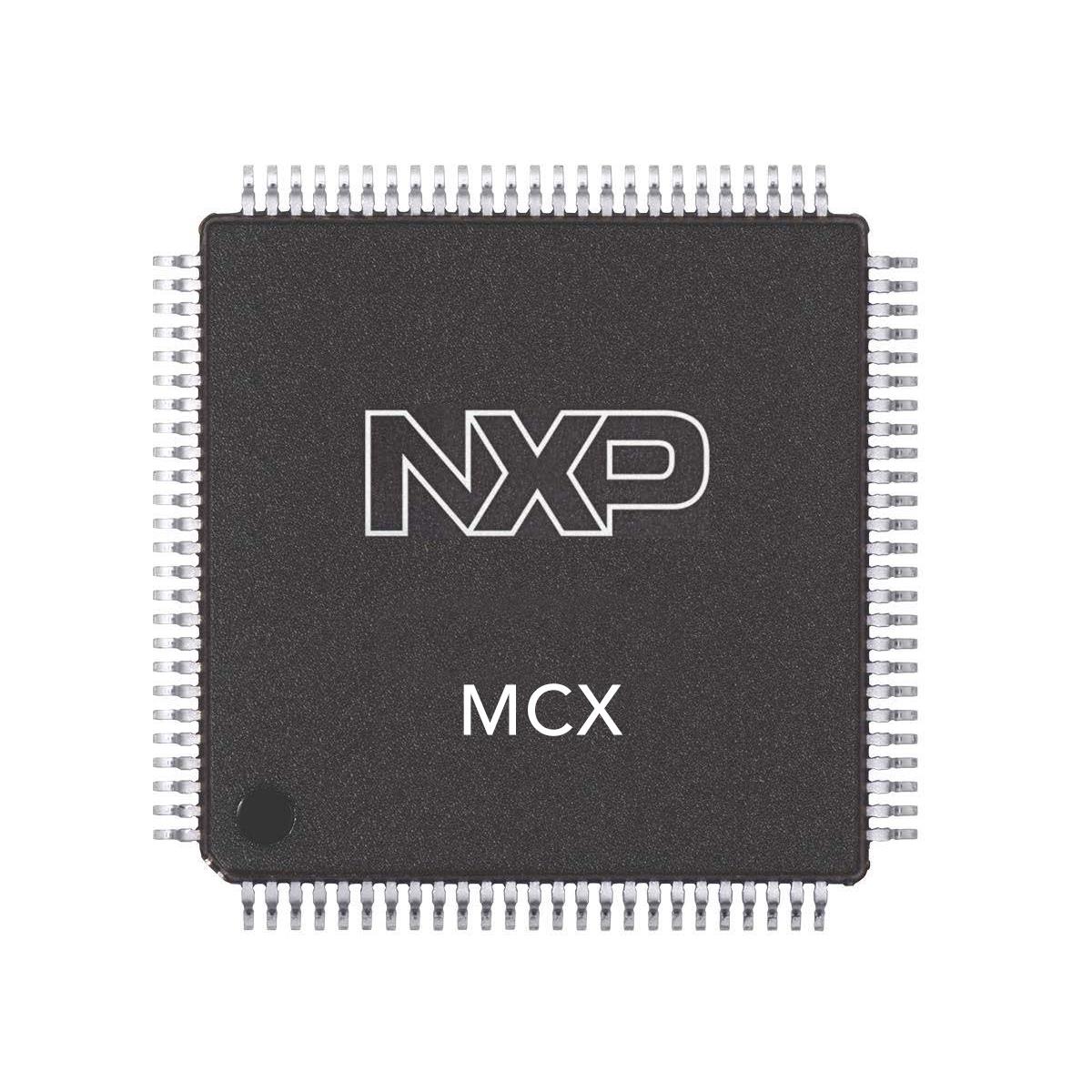

MCXN235VDFT
