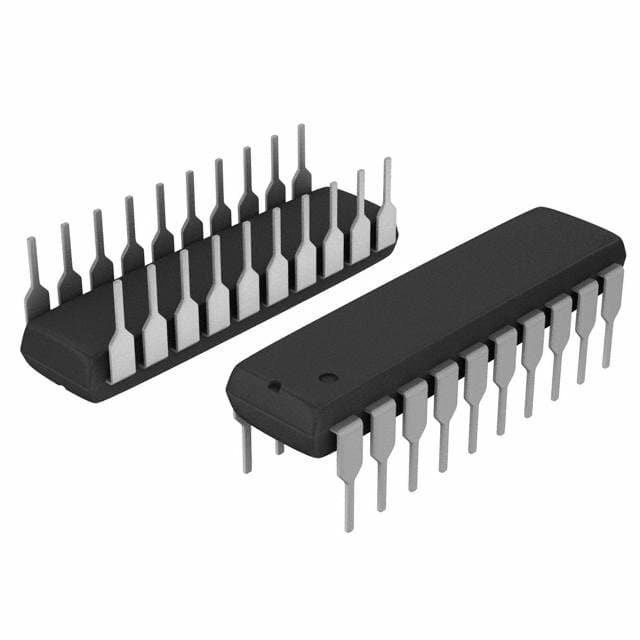

MCHC705JJ7CPE
IC MCU 8BIT 6KB OTP 20DIPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MCHC705JJ7CPE is an 8-bit HC05 series microcontroller featuring a 6KB One-Time Programmable (OTP) program memory and 224 x 8 bytes of RAM. This device operates at a maximum speed of 2.1MHz and incorporates 4x12-bit Analog-to-Digital converters. It offers 14 I/O pins and includes peripherals such as Power-On Reset (POR), a temperature sensor, and a Watchdog Timer (WDT). The MCHC705JJ7CPE is housed in a 20-DIP (0.300", 7.62mm) through-hole package and operates within a voltage range of 2.7V to 5.5V. Its internal oscillator simplifies design. This component is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: HC05RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Speed | 2.1MHz |
| Program Memory Size | 6KB (6K x 8) |
| RAM Size | 224 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | HC05 |
| Data Converters | A/D 4x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SIO |
| Peripherals | POR, Temp Sensor, WDT |
| Supplier Device Package | 20-DIP |
| Number of I/O | 14 |
| Programmable | Not Verified |
