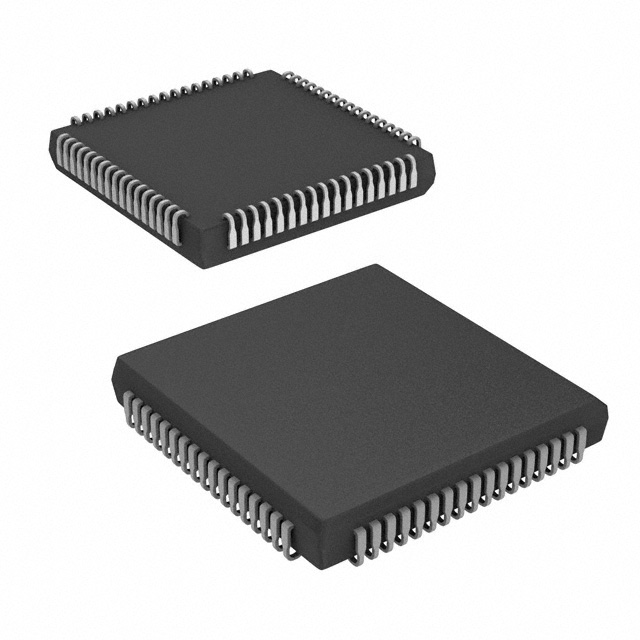

MCHC11F1VFNE4R
IC MCU 8BIT ROMLESS 68PLCCManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP HC11 microcontroller featuring an 8-bit HC11 core operating at 4MHz. This ROMless device offers 1K x 8 RAM and 512 x 8 EEPROM, with 30 general-purpose I/O pins. Connectivity is supported via SCI and SPI interfaces. Integrated peripherals include Power-On Reset (POR) and Watchdog Timer (WDT). The device incorporates an 8-channel, 8-bit Analog-to-Digital converter. Supplied in a 68-PLCC (J-Lead) surface mount package, it operates within a voltage range of 4.75V to 5.25V and an ambient temperature range of -40°C to 105°C. This component is suitable for applications in automotive and industrial control systems. The MCHC11F1VFNE4R is provided on tape and reel.
Additional Information
Series: HC11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 68-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 4MHz |
| Program Memory Size | - |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | 512 x 8 |
| Core Processor | HC11 |
| Data Converters | A/D 8x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Connectivity | SCI, SPI |
| Peripherals | POR, WDT |
| Supplier Device Package | 68-PLCC (24.21x24.21) |
| Number of I/O | 30 |
| Programmable | Not Verified |
