MCHC11F1CFNE2

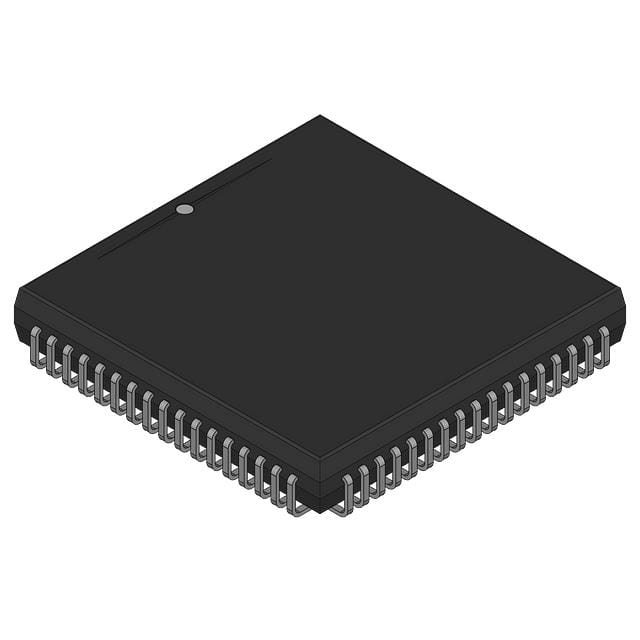

IC MCU 8BIT ROMLESS 68PLCCManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC11 microcontroller, part number MCHC11F1CFNE2, is an 8-bit, ROMless device operating at 2MHz. This HC11 series component features a 68-PLCC package with surface mount connectivity. On-chip peripherals include Power-On Reset (POR) and Watchdog Timer (WDT). For communication, it supports SCI and SPI interfaces. The MCHC11F1CFNE2 offers 1K x 8 of RAM and 512 x 8 of EEPROM. It includes an 8x8-bit Analog-to-Digital converter and provides 30 I/O pins. The device operates within a voltage range of 4.75V to 5.25V and is rated for an operating temperature of -40°C to 85°C. This component is suitable for applications in industrial automation and automotive systems.
Additional Information
Series: HC11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 68-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 2MHz |
| Program Memory Size | - |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | 512 x 8 |
| Core Processor | HC11 |
| Data Converters | A/D 8x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Connectivity | SCI, SPI |
| Peripherals | POR, WDT |
| Supplier Device Package | 68-PLCC (24.21x24.21) |
| Number of I/O | 30 |
| Programmable | Not Verified |
