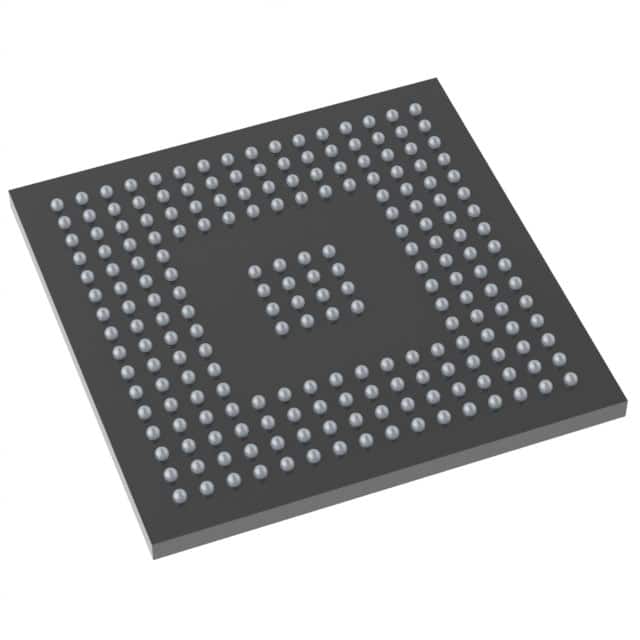

MCF54455CVP200
IC MCU 32BIT ROMLESS 360BGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MCF5445x Series, MCF54455CVP200, a 32-bit ColdFire V4 microcontroller, operates at 200MHz with a ROMless architecture. This single-core device features a 360-BGA (23x23) package and requires surface mount installation. Connectivity options include I2C, SPI, SSI, UART/USART, and USB OTG. On-chip resources include 32KB of RAM, DMA, and a WDT. The operating voltage range is 1.35V to 3.6V, with an operating temperature of -40°C to 85°C. This component is suitable for applications in industrial automation, automotive, and consumer electronics.
Additional Information
Series: MCF5445xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 360-BBGA |
| Mounting Type | Surface Mount |
| Speed | 200MHz |
| Program Memory Size | - |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | ColdFire V4 |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.35V ~ 3.6V |
| Connectivity | I2C, SPI, SSI, UART/USART, USB OTG |
| Peripherals | DMA, WDT |
| Supplier Device Package | 360-BGA (23x23) |
| Number of I/O | 132 |
| Programmable | Not Verified |
