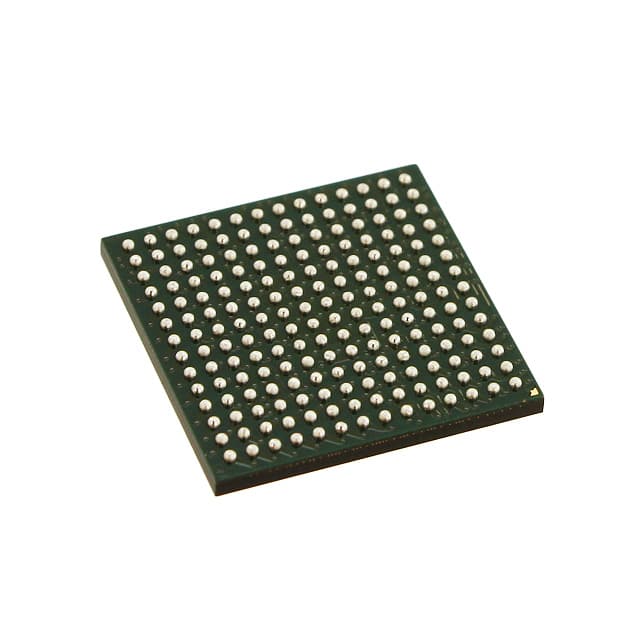

MCF5372LCVM240
IC MCU 32BIT ROMLESS 196MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MCF5372LCVM240 is a ROMless 32-bit Coldfire V3 microcontroller from the MCF537x series. This single-core device operates at 240MHz and features 32KB of RAM. Connectivity options include EBI/EMI, Ethernet, I2C, SPI, SSI, UART/USART, and USB (including OTG). Peripherals such as DMA, POR, PWM, and WDT are integrated. The MCF5372LCVM240 is housed in a 196-LBGA (15x15) package, suitable for surface mounting, and operates within an ambient temperature range of -40°C to 85°C. Its supply voltage range is 1.4V to 3.6V. This component is utilized in various industrial and embedded applications.
Additional Information
Series: MCF537xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-LBGA |
| Mounting Type | Surface Mount |
| Speed | 240MHz |
| Program Memory Size | - |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | Coldfire V3 |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.4V ~ 3.6V |
| Connectivity | EBI/EMI, Ethernet, I2C, SPI, SSI, UART/USART, USB, USB OTG |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 196-LBGA (15x15) |
| Number of I/O | 62 |
| Programmable | Not Verified |
