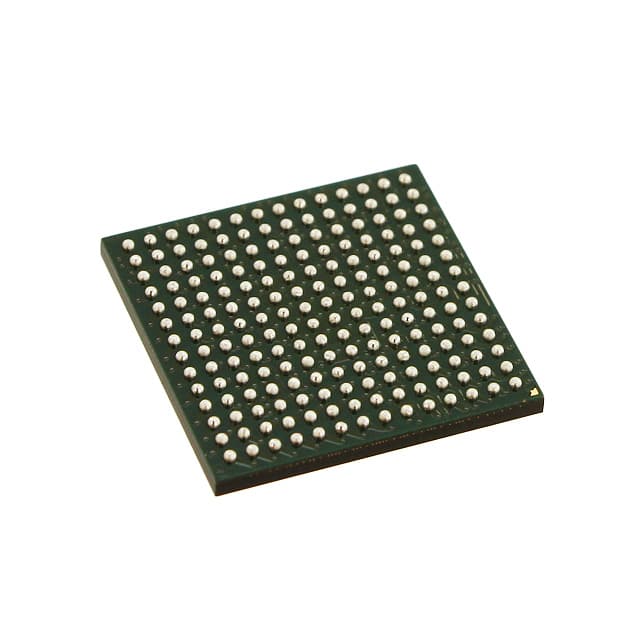

MCF5274LVM166
IC MCU 32BIT ROMLESS 196MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MCF527x series MCF5274LVM166 is a 32-bit single-core Coldfire V2 microcontroller, operating at 166MHz. This ROMless device features 64K x 8 RAM and 61 I/O lines. Connectivity options include EBI/EMI, Ethernet, I2C, SPI, UART/USART, and USB. The MCF5274LVM166 is housed in a 196-LBGA (15x15) package, suitable for surface mounting. Integrated peripherals include DMA and WDT. This component operates within a temperature range of 0°C to 70°C (TA) and requires a supply voltage of 1.4V to 1.6V. It finds applications in industrial automation and networking equipment.
Additional Information
Series: MCF527xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-LBGA |
| Mounting Type | Surface Mount |
| Speed | 166MHz |
| Program Memory Size | - |
| RAM Size | 64K x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | External |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | Coldfire V2 |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.4V ~ 1.6V |
| Connectivity | EBI/EMI, Ethernet, I2C, SPI, UART/USART, USB |
| Peripherals | DMA, WDT |
| Supplier Device Package | 196-LBGA (15x15) |
| Number of I/O | 61 |
| Programmable | Not Verified |
