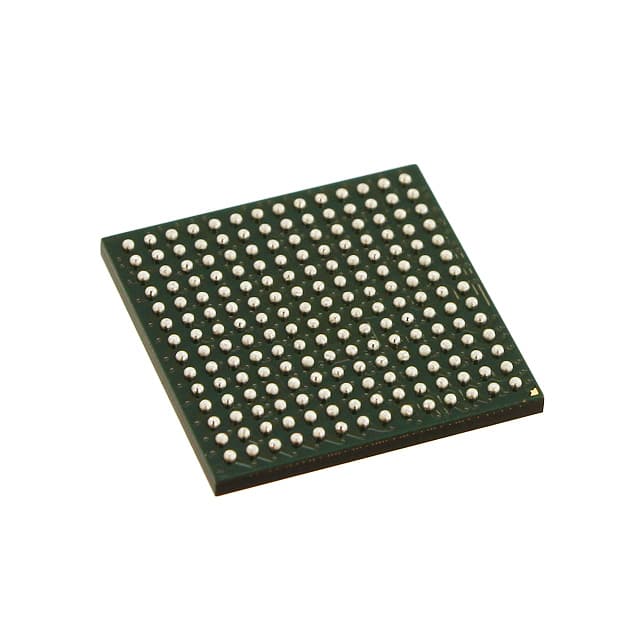

MCF5274LCVM166
IC MCU 32BIT ROMLESS 196MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MCF527x series MCF5274LCVM166 is a 32-bit Coldfire V2 microcontroller featuring a ROMless architecture and operating at 166MHz. This single-core device offers 64K x 8 RAM and is housed in a 196-LBGA (15x15) surface mount package. Connectivity options include EBI/EMI, Ethernet, I2C, SPI, UART/USART, and USB. Peripherals such as DMA and WDT are integrated for enhanced functionality. The MCF5274LCVM166 is designed for applications requiring robust processing capabilities and flexible communication interfaces, finding use in automotive, industrial control, and networking infrastructure. It operates within a voltage range of 1.4V to 1.6V and has an operating temperature range of -40°C to 85°C.
Additional Information
Series: MCF527xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-LBGA |
| Mounting Type | Surface Mount |
| Speed | 166MHz |
| Program Memory Size | - |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | Coldfire V2 |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.4V ~ 1.6V |
| Connectivity | EBI/EMI, Ethernet, I2C, SPI, UART/USART, USB |
| Peripherals | DMA, WDT |
| Supplier Device Package | 196-LBGA (15x15) |
| Number of I/O | 69 |
| Programmable | Not Verified |
