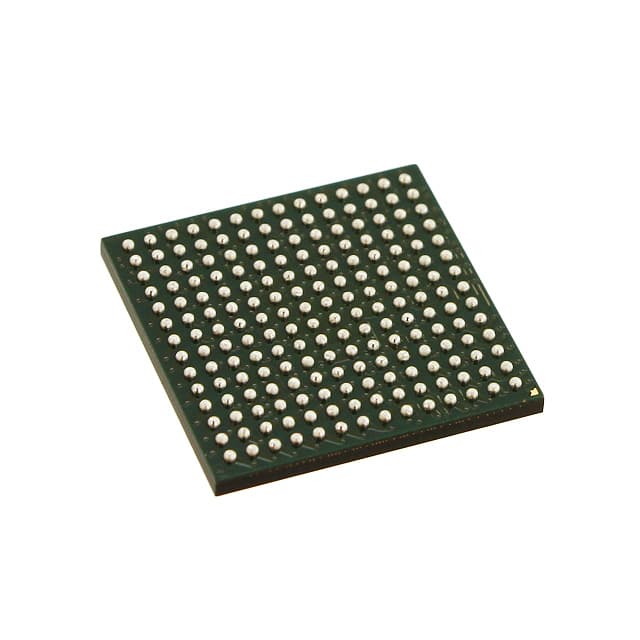

MCF5272VM66R2
IC MCU 32BIT 16KB ROM 196MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MCF5272VM66R2 is a 32-bit Coldfire V2 microcontroller from the MCF527x series. This surface mount component operates at 66MHz and features a 16KB ROM for program memory and 1K x 32 RAM. It offers extensive connectivity options including EBI/EMI, Ethernet, I2C, SPI, UART/USART, and USB. Peripherals include DMA and WDT. The device is housed in a 196-LBGA (15x15) package and operates within a temperature range of 0°C to 70°C. This microcontroller is suitable for applications in industrial automation, networking, and consumer electronics. The MCF5272VM66R2 is supplied on a Tape & Reel (TR).
Additional Information
Series: MCF527xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 196-LBGA |
| Mounting Type | Surface Mount |
| Speed | 66MHz |
| Program Memory Size | 16KB (4K x 32) |
| RAM Size | 1K x 32 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | External |
| Program Memory Type | ROM |
| EEPROM Size | - |
| Core Processor | Coldfire V2 |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | EBI/EMI, Ethernet, I2C, SPI, UART/USART, USB |
| Peripherals | DMA, WDT |
| Supplier Device Package | 196-LBGA (15x15) |
| Number of I/O | 32 |
| Programmable | Not Verified |
