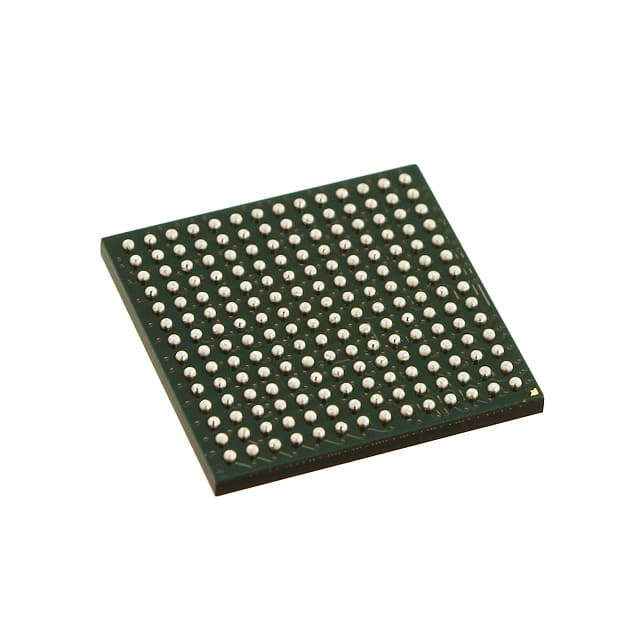

MCF5272VF66
IC MCU 32BIT 16KB ROM 196MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MCF5272VF66 is a 32-bit Coldfire V2 microcontroller featuring a single-core architecture operating at 66MHz. This component offers 16KB of ROM for program memory and 1K x 32 of RAM. Connectivity is provided through EBI/EMI, Ethernet, I2C, SPI, UART/USART, and USB interfaces. On-chip peripherals include DMA and WDT. The MCF527x series device is housed in a 196-LBGA package and supports surface mount installation. It operates within a voltage range of 3V to 3.6V and has an operating temperature range of 0°C to 70°C. This microcontroller is suitable for applications in networking and industrial automation.
Additional Information
Series: MCF527xRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-LBGA |
| Mounting Type | Surface Mount |
| Speed | 66MHz |
| Program Memory Size | 16KB (4K x 32) |
| RAM Size | 1K x 32 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | External |
| Program Memory Type | ROM |
| EEPROM Size | - |
| Core Processor | Coldfire V2 |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | EBI/EMI, Ethernet, I2C, SPI, UART/USART, USB |
| Peripherals | DMA, WDT |
| Supplier Device Package | 196-LBGA (15x15) |
| Number of I/O | 32 |
| Programmable | Not Verified |
Request a Quote
