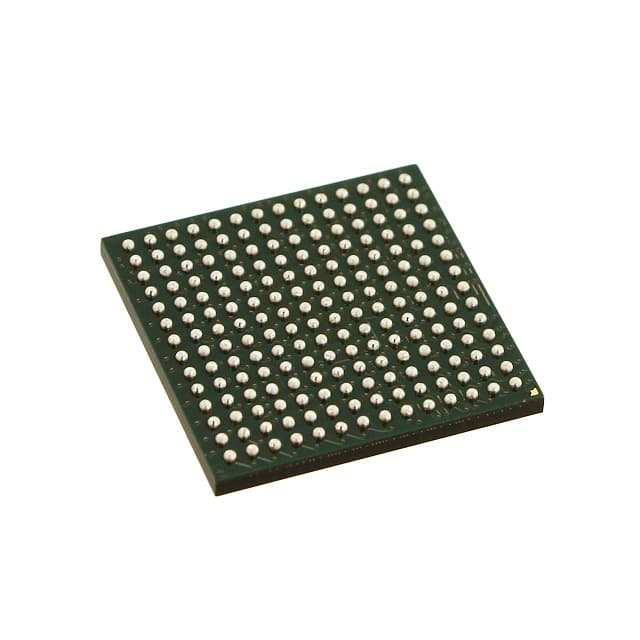

MCF5272CVM66J
IC MCU 32BIT 16KB ROM 196MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MCF5272CVM66J is a 32-bit Coldfire V2 microcontroller featuring a single-core architecture operating at 66MHz. This component offers 16KB of ROM for program memory (organized as 4K x 32) and 1KB of RAM (organized as 1K x 32). Connectivity options include EBI/EMI, Ethernet, I2C, SPI, UART/USART, and USB. Peripherals include DMA and WDT. The device is housed in a 196-LBGA (15x15) package, suitable for surface mount applications. It operates within a voltage range of 3V to 3.6V and has an operating temperature range of -40°C to 85°C. The MCF527x series microcontroller is utilized in industrial automation and networking applications.
Additional Information
Series: MCF527xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-LBGA |
| Mounting Type | Surface Mount |
| Speed | 66MHz |
| Program Memory Size | 16KB (4K x 32) |
| RAM Size | 1K x 32 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | ROM |
| EEPROM Size | - |
| Core Processor | Coldfire V2 |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | EBI/EMI, Ethernet, I2C, SPI, UART/USART, USB |
| Peripherals | DMA, WDT |
| Supplier Device Package | 196-LBGA (15x15) |
| Number of I/O | 32 |
| Programmable | Not Verified |
