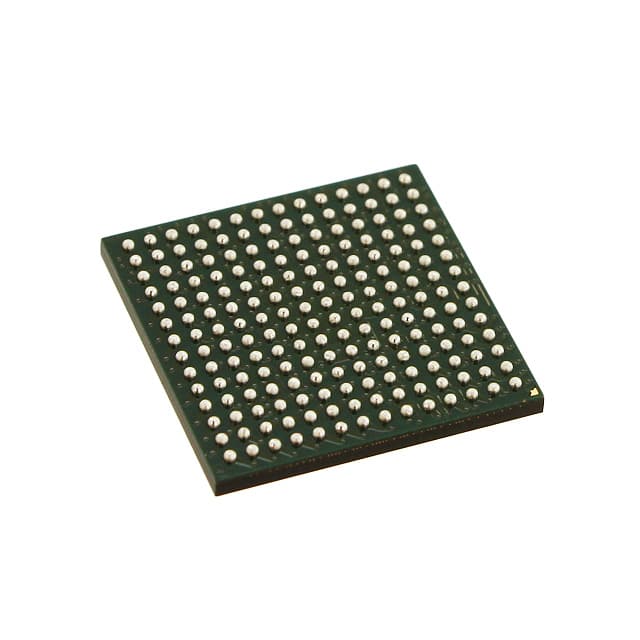

MCF5270CVM150
IC MCU 32BIT ROMLESS 196MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MCF527x series MCF5270CVM150 is a 32-bit single-core Coldfire V2 microcontroller. This ROMless device operates at 150MHz and features 64K x 8 RAM. Connectivity options include EBI/EMI, Ethernet, I2C, SPI, and UART/USART. It offers 97 I/O lines and integrated peripherals such as DMA and WDT. The MCF5270CVM150 is housed in a 196-LBGA (15x15) package and supports surface mount installation. It operates within a temperature range of -40°C to 85°C and requires a supply voltage between 1.4V and 1.6V. This component is commonly utilized in industrial automation, networking, and telecommunications applications.
Additional Information
Series: MCF527xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-LBGA |
| Mounting Type | Surface Mount |
| Speed | 150MHz |
| Program Memory Size | - |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | Coldfire V2 |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.4V ~ 1.6V |
| Connectivity | EBI/EMI, Ethernet, I2C, SPI, UART/USART |
| Peripherals | DMA, WDT |
| Supplier Device Package | 196-LBGA (15x15) |
| Number of I/O | 97 |
| Programmable | Not Verified |
