MCF5253VM140J
IC MCU 32BIT ROMLESS 225MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MCF525x series microcontroller, part number MCF5253VM140J, features a 32-bit single-core Coldfire V2 processor operating at 140MHz. This ROMless device offers 128KB of RAM and a 225-MAPBGA (13x13) package for surface mounting. Connectivity options include CANbus, EBI/EMI, I2C, QSPI, UART/USART, and USB OTG. On-chip peripherals include DMA and WDT. It is equipped with 6x12-bit Analog-to-Digital converters. The operating voltage is 1.08V to 1.32V, with an operating temperature range of -20°C to 70°C. This component is suitable for applications in automotive and industrial automation.
Additional Information
Series: MCF525xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 225-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 140MHz |
| Program Memory Size | - |
| RAM Size | 128K x 8 |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Oscillator Type | External |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | Coldfire V2 |
| Data Converters | A/D 6x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.08V ~ 1.32V |
| Connectivity | CANbus, EBI/EMI, I2C, QSPI, UART/USART, USB OTG |
| Peripherals | DMA, WDT |
| Supplier Device Package | 225-MAPBGA (13x13) |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
MCF5251VM140
IC MCU 32BIT ROMLESS 225MAPBGA
MCF5251CVM140R2

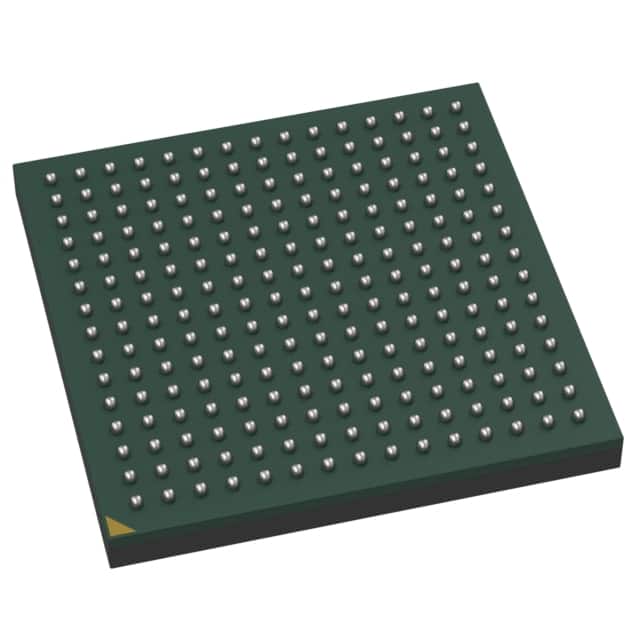

IC MCU 32BIT ROMLESS 225MAPBGA
