MCF5232CVM150J
IC MCU 32BIT ROMLESS 196MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MCF5232CVM150J is a 32-bit Coldfire V2 microcontroller from the MCF523x series. This ROMless device operates at 150MHz, featuring a single-core architecture. Connectivity options include CANbus, EBI/EMI, I2C, SPI, and UART/USART. The MCF5232CVM150J provides 64KB of RAM and 97 I/O pins, along with DMA and WDT peripherals. It is available in a 196-LBGA (15x15) surface-mount package and operates from a supply voltage of 1.4V to 1.6V. The operating temperature range is -40°C to 85°C. This component is utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: MCF523xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |

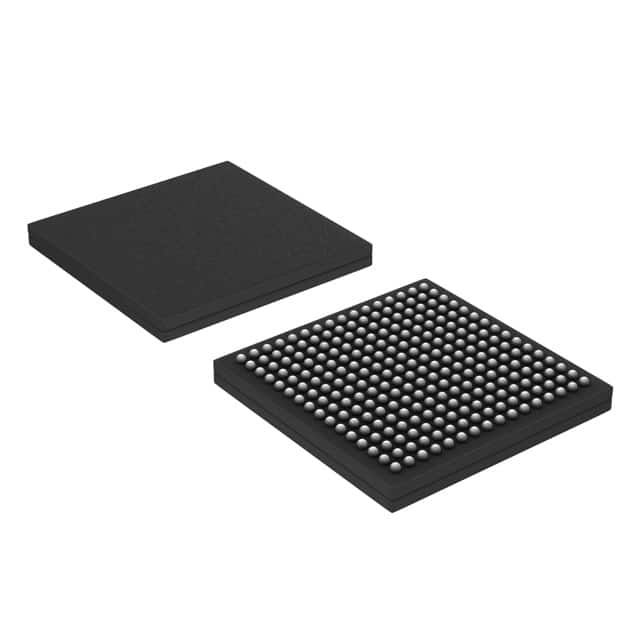

| Package / Case | 196-LBGA |
| Mounting Type | Surface Mount |
| Speed | 150MHz |
| Program Memory Size | - |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | Coldfire V2 |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.4V ~ 1.6V |
| Connectivity | CANbus, EBI/EMI, I2C, SPI, UART/USART |
| Peripherals | DMA, WDT |
| Supplier Device Package | 196-LBGA (15x15) |
| Number of I/O | 97 |
| Programmable | Not Verified |
