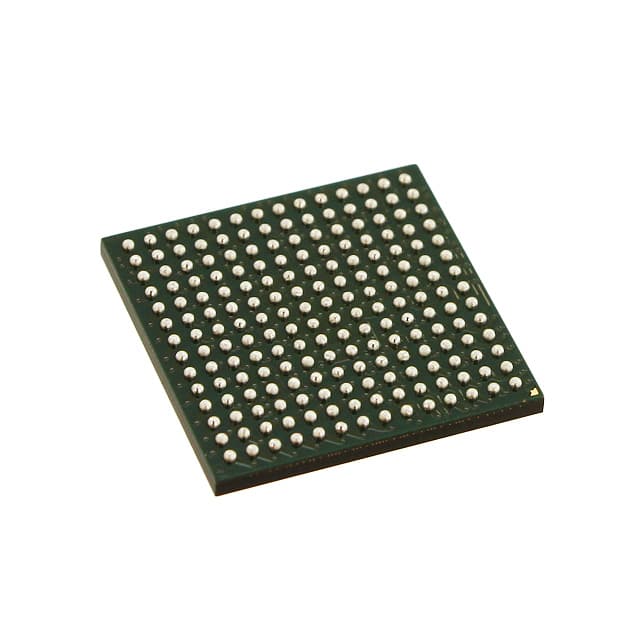

MCF52277CVM160
IC MCU 32BIT ROMLESS 196MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MCF5227x series microcontroller, part number MCF5227CVM160, is a 32-bit single-core Coldfire V2 device operating at 166.67MHz. This ROMless microcontroller features 128KB of RAM and a 196-MAPBGA (15x15) surface mount package. Connectivity options include CANbus, EBI/EMI, I2C, SPI, SSI, UART/USART, and USB OTG. Peripherals integrated into the MCF5227CVM160 include DMA, LCD, PWM, and WDT. With 55 I/O lines and an external oscillator, this component is suitable for applications requiring robust control and communication. The operating temperature range is -40°C to 85°C (TA), and it operates on a supply voltage of 1.4V to 1.6V. This device is utilized in automotive, industrial automation, and consumer electronics sectors.
Additional Information
Series: MCF5227xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-LBGA |
| Mounting Type | Surface Mount |
| Speed | 166.67MHz |
| Program Memory Size | - |
| RAM Size | 128K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | Coldfire V2 |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.4V ~ 1.6V |
| Connectivity | CANbus, EBI/EMI, I2C, SPI, SSI, UART/USART, USB OTG |
| Peripherals | DMA, LCD, PWM, WDT |
| Supplier Device Package | 196-MAPBGA (15x15) |
| Number of I/O | 55 |
| Programmable | Not Verified |
