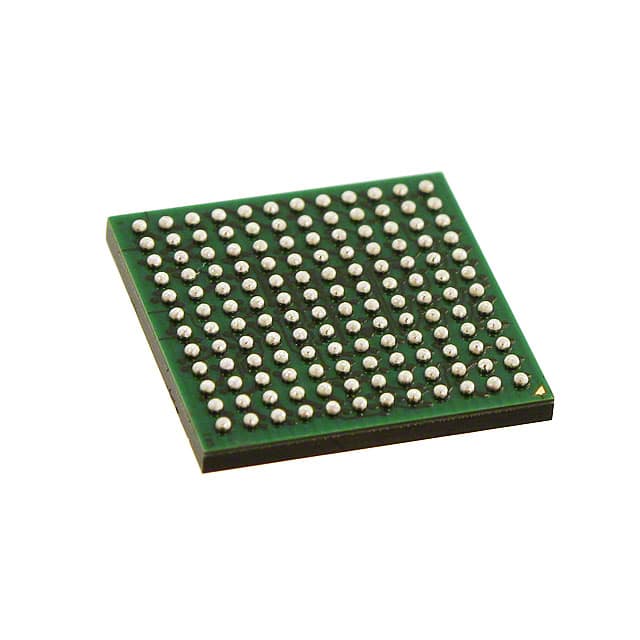

MCF52256VN80
IC MCU 32B 256KB FLASH 144MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MCF5225x series microcontroller, part number MCF52256VN80. This 32-bit Coldfire V2 architecture device features a single-core processor operating at 80MHz. It offers 256KB of FLASH program memory and 32KB of RAM. Connectivity options include CANbus, EBI/EMI, Ethernet, I2C, QSPI, UART/USART, and USB OTG. Peripherals include DMA, LVD, POR, PWM, and WDT. The device is housed in a 144-MAPBGA (13x13) package and supports surface mount installation. It includes 8x12-bit Analog-to-Digital converters and 96 I/O lines. The operating temperature range is 0°C to 70°C. This component is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: MCF5225xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | Coldfire V2 |
| Data Converters | A/D 8x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, QSPI, UART/USART, USB OTG |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 144-MAPBGA (13x13) |
| Number of I/O | 96 |
| Programmable | Not Verified |
