MCF5213CAF66R
IC MCU 32BIT 256KB FLASH 100LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MCF521x series microcontroller, part number MCF5213CAF66R, features a 32-bit Coldfire V2 single-core processor operating at 66MHz. This device offers 256KB of FLASH program memory and 32KB of RAM. Connectivity options include CANbus, I2C, SPI, and UART/USART. Integrated peripherals include DMA, LVD, POR, PWM, and WDT. It also includes 8x12-bit Analog-to-Digital converters. The MCF5213CAF66R is supplied in a 100-LQFP (14x14) surface mount package and operates from a 3V to 3.6V supply. This component is commonly found in industrial automation and automotive applications. It is provided in Tape & Reel (TR) packaging.
Additional Information
Series: MCF521xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 100-LQFP |
| Mounting Type | Surface Mount |
| Speed | 66MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | Coldfire V2 |
| Data Converters | A/D 8x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, I2C, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 100-LQFP (14x14) |
| Number of I/O | 55 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
MCF5211LCEP66
32-BIT MICROCONTROLLERS - MCU MC

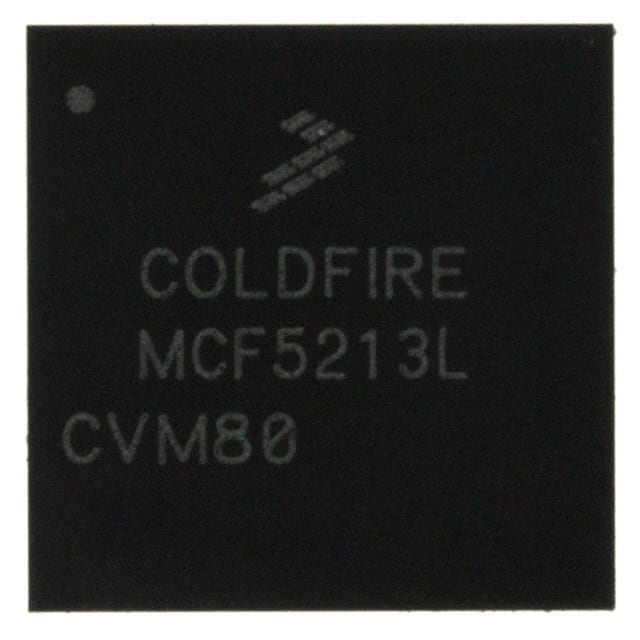

MCF5213LCVM80
