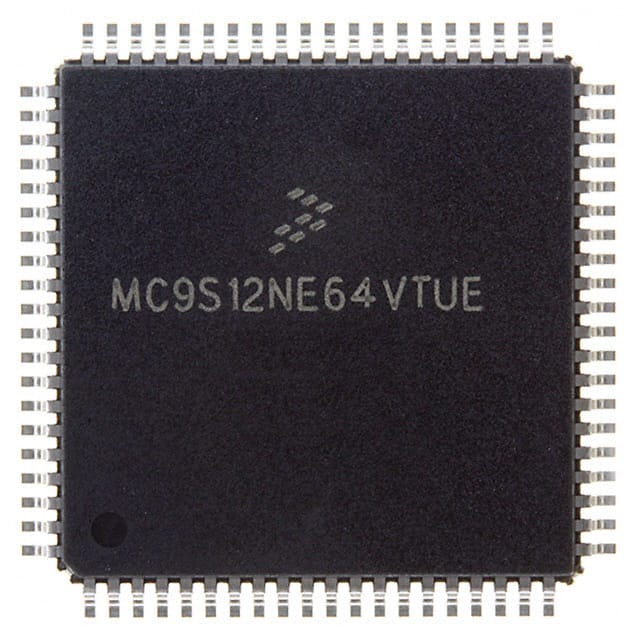

MC9S12NE64VTUE
IC MCU 16BIT 64KB FLASH 80TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. MC9S12NE64VTUE is a 16-bit HCS12 microcontroller featuring 64KB of FLASH program memory and 8KB of RAM. This component operates at a speed of 25MHz and includes an 8x10-bit Analog-to-Digital converter. Connectivity options consist of EBI/EMI, Ethernet, I2C, SCI, and SPI. Peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The device is housed in an 80-TQFP Exposed Pad package and supports surface mount installation. Its operating temperature range is -40°C to 105°C. The MC9S12NE64VTUE is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: HCS12RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 80-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HCS12 |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.375V ~ 3.465V |
| Connectivity | EBI/EMI, Ethernet, I2C, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 80-TQFP-EP (14x14) |
| Number of I/O | 38 |
| Programmable | Not Verified |
