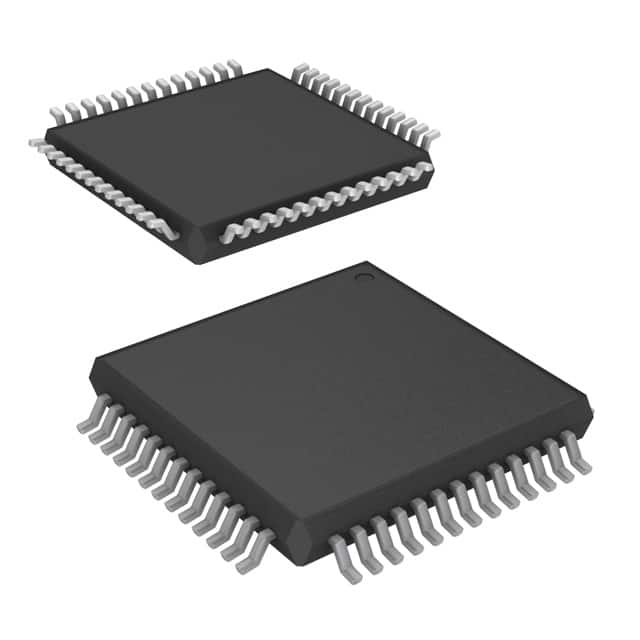

MC9S12GC16CPBE
IC MCU 16BIT 16KB FLASH 52TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HCS12 microcontroller, part number MC9S12GC16CPBE. This 16-bit MCU features a 25MHz HCS12 core with 16KB of FLASH program memory and 1KB of RAM. On-chip peripherals include POR, PWM, and WDT. Connectivity options consist of EBI/EMI, SCI, and SPI. It also incorporates an 8x10-bit Analog-to-Digital converter. The MC9S12GC16CPBE is housed in a 52-TQFP package and supports a supply voltage range of 2.35V to 5.5V. Operating temperature is specified from -40°C to 85°C. This component is commonly utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: HCS12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 52-LQFP |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HCS12 |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V |
| Connectivity | EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 52-TQFP (10x10) |
| Number of I/O | 35 |
| Programmable | Verified |
Request a Quote
