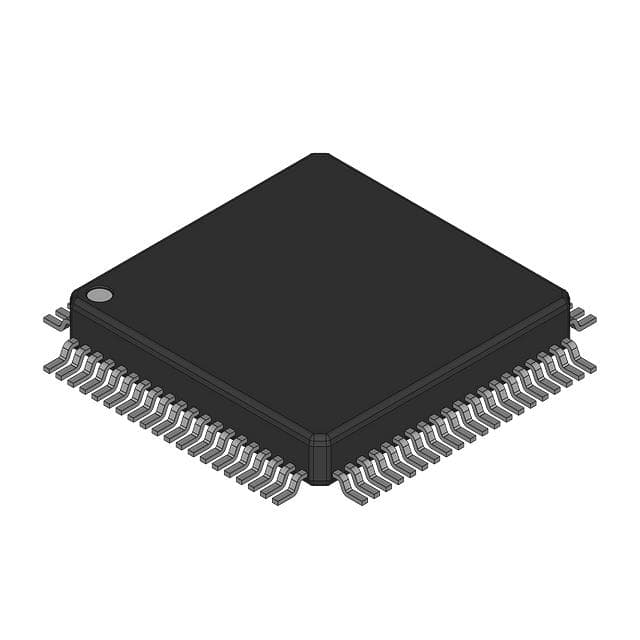

MC9S12DG128VFUE
IC MCU 16BIT 128KB FLASH 80QFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
HCS12 HCS12 Microcontroller IC 16-Bit 25MHz 128KB (128K x 8) FLASH 80-QFP (14x14)
Additional Information
Series: HCS12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 80-QFP |
| Mounting Type | Surface Mount |
| Speed | 25MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | HCS12 |
| Data Converters | A/D 16x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.25V |
| Connectivity | CANbus, I2C, SCI, SPI |
| Peripherals | PWM, WDT |
| Supplier Device Package | 80-QFP (14x14) |
| Number of I/O | 59 |
| Programmable | Not Verified |
