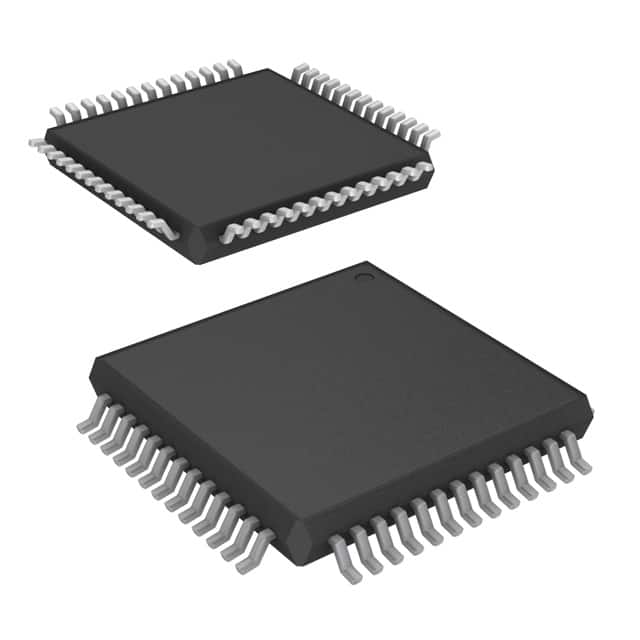

MC9S12C32VPBE16
IC MCU 16BIT 32KB FLASH 52TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HCS12 microcontroller, part number MC9S12C32VPBE16, features a 16-bit HCS12 core operating at 16MHz. This unit offers 32KB of FLASH program memory and 2KB of RAM, with an integrated 8-channel 10-bit Analog-to-Digital converter. Connectivity options include CANbus, EBI/EMI, SCI, and SPI interfaces. Peripherals such as Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT) are integrated. The device is housed in a 52-TQFP (10x10) surface-mount package, operating within a temperature range of -40°C to 105°C. It is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: HCS12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 52-LQFP |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HCS12 |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 52-TQFP (10x10) |
| Number of I/O | 35 |
| Programmable | Verified |
