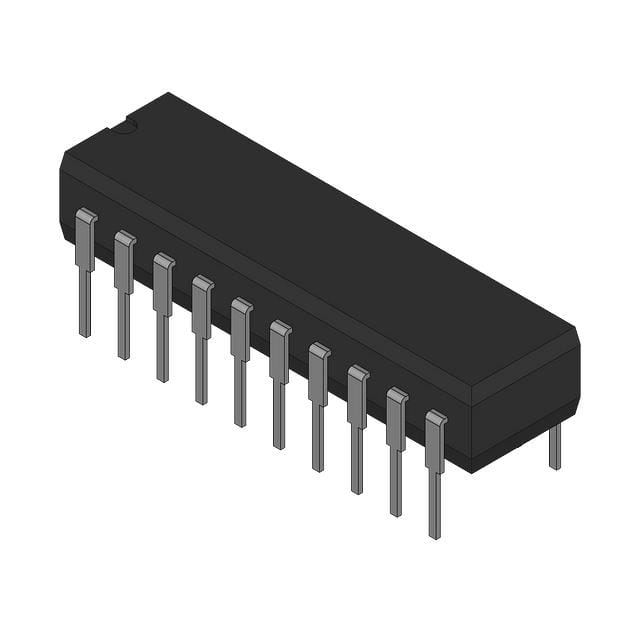

MC9S08SH4CPJ
IC MCU 8BIT 4KB FLASH 20DIPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 Series microcontroller, part number MC9S08SH4CPJ. This 8-bit MCU features an S08 core operating at up to 40MHz, with 4KB of FLASH program memory and 256 bytes of RAM. Connectivity options include I2C, LINbus, SCI, and SPI interfaces. Integrated peripherals include LVD, POR, PWM, and WDT. The device is equipped with a 12-channel, 10-bit Analog-to-Digital converter and offers 17 general-purpose I/O pins. The MC9S08SH4CPJ is housed in a 20-DIP (0.300", 7.62mm) through-hole package, suitable for operation within an extended temperature range of -40°C to 85°C. This component finds application in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Speed | 40MHz |
| Program Memory Size | 4KB (4K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 12x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 20-DIP |
| Number of I/O | 17 |
| Programmable | Not Verified |
