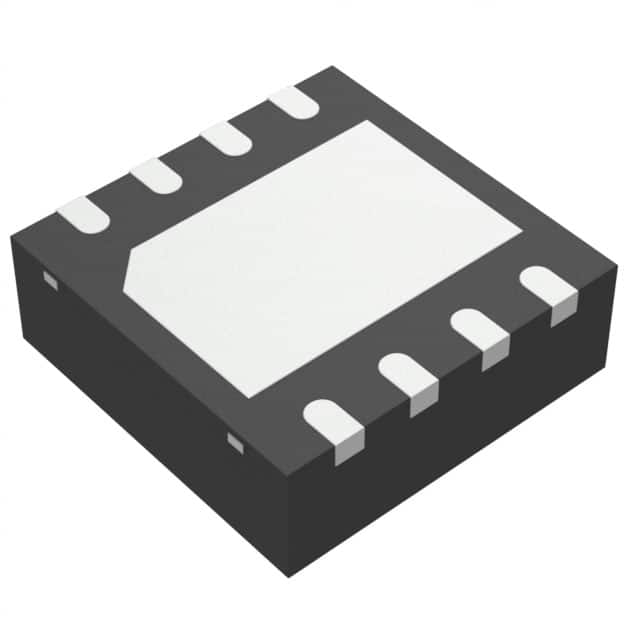

MC9S08QA4CFQER
IC MCU 8BIT 4KB FLASH 8DFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. S08 MC9S08QA4CFQER is an 8-bit microcontroller featuring a 20MHz S08 core. This component offers 4KB of FLASH program memory and 256 bytes of RAM. It includes a 4-channel 10-bit Analog-to-Digital converter, along with peripherals such as LVD, POR, PWM, and WDT. The device operates from a 1.8V to 3.6V supply and is housed in an 8-DFN-EP (4x4) package. The MC9S08QA4CFQER is suitable for applications in consumer electronics and industrial automation. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 4KB (4K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 4x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | - |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 8-DFN-EP (4x4) |
| Number of I/O | 4 |
| Programmable | Not Verified |
